EDSP08SGLNNTR04 footprint, schematic symbol and 3D model by TE Connectivity

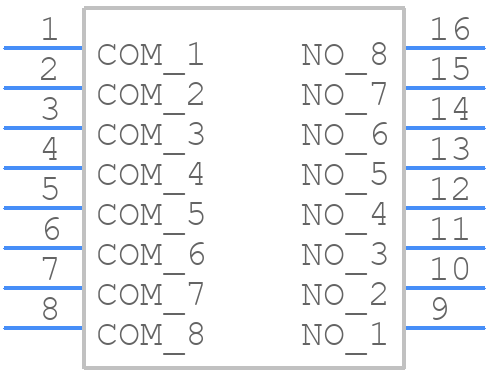

Symbol

click to zoom

PCB Footprints

EDSP08SGLNNTR04 - TE Connectivity PCB footprint - Other - Other - EDSP08SGLNNTR04-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EDSP08SGLNNTR04
Part Number EDSP08SGLNNTR04
Manufacturer TE Connectivity
Pin Count 16
Part Category Switch
Package Category Other
Footprint Name Other - EDSP08SGLNNTR04-2
Released Date Jul 21, 2021
Last Modified Date Dec 15, 2024 11:00 PM UTC
Pinout / Pin List Click Here (Member Only)

EDSP08SGLNNTR04 Details
