EECF5R5U105N - Panasonic

Description: CAP, 1F, 5.5V, DOUBLE LAYER, RADIAL

Download EECF5R5U105N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EECF5R5U105N - Panasonic - PCB symbol
click to zoom
PCB Footprints

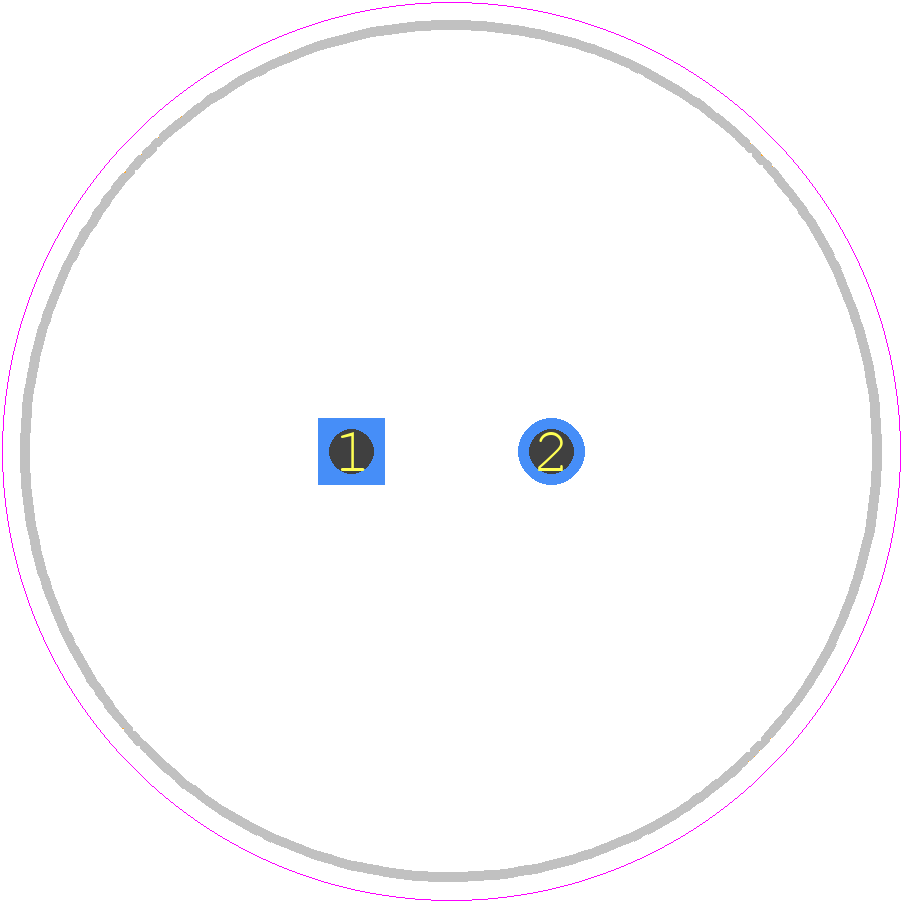

EECF5R5U105N - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 21.5*8*21
click to zoom
3D Models
EECF5R5U105N - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 21.5*8*21
click to zoom

EECF5R5U105N Details

  • Manufacturer Part Number:

    EECF5R5U105N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Capacitance:

    1000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    21.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    Tray

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    FLAT

EECF5R5U105N Frequently Asked Questions (FAQs)

  • The recommended land pattern for EECF5R5U105N is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner and a 0.3mm solder mask clearance.
  • The ESR of EECF5R5U105N is 0.015Ω. You should consider this value when designing your circuit to ensure that it meets the required impedance and power handling requirements.
  • The maximum operating temperature range for EECF5R5U105N is -40°C to 105°C. Operating the capacitor outside of this range may affect its performance and lifespan.
  • Yes, EECF5R5U105N is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure that the capacitor is properly secured to the PCB to prevent mechanical stress.
  • Store EECF5R5U105N in a cool, dry place away from direct sunlight and moisture. Avoid exposing the capacitor to extreme temperatures, humidity, or physical stress, which can affect its performance and lifespan.
