- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EELK508V-06P
- Part Number EELK508V-06P
- Manufacturer Dinkle
- Pin Count 6
- Part Category Connector
- Package Category Other

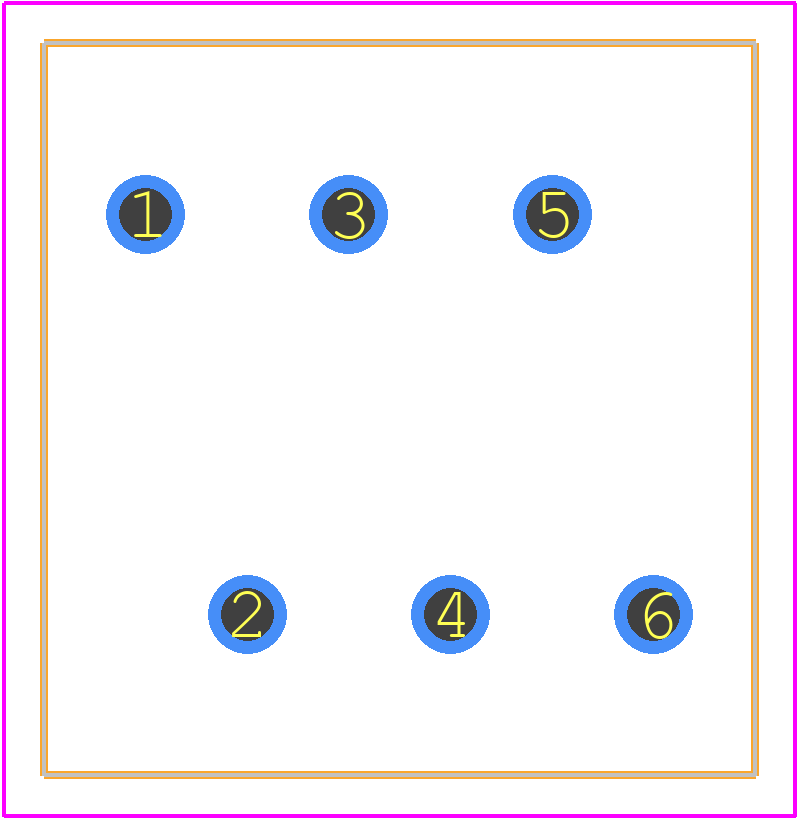

- Footprint Name Other - EELK508V-06P-1
- Released Date Mar 15, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EELK508V-06P Details
-
Manufacturer Part Number:
EELK508V-06P
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Dinkle Enterprises
-
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK
EELK508V-06P Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals of EELK508V-06P is 0.5-0.8 Nm (5-8 in-lbs).
-
Yes, the EELK508V-06P is designed to withstand vibrations up to 10G (IEC 60068-2-6) and is suitable for use in high-vibration environments.
-
Yes, the EELK508V-06P meets the UL94-V0 flammability rating, making it suitable for use in applications that require this level of flammability resistance.
-
The EELK508V-06P has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
-
The EELK508V-06P has a moisture resistance rating of IP67, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.
Trust Checks
Expert Contribution
System Verified
Community Approved
EELK508V-06P Overview
Use the download button to access the EELK508V-06P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EELK5,
or try a keyword search, such as Terminals and Terminal Blocks
