EFD25/9 - Kaschke Components

Description: Lamp choke EFD 25/9 low profile

Download EFD25/9 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EFD25/9 model

Email notifications will be applied after download.

Send part feedback

Symbol

EFD25/9 - Kaschke Components - PCB symbol

PCB Footprints

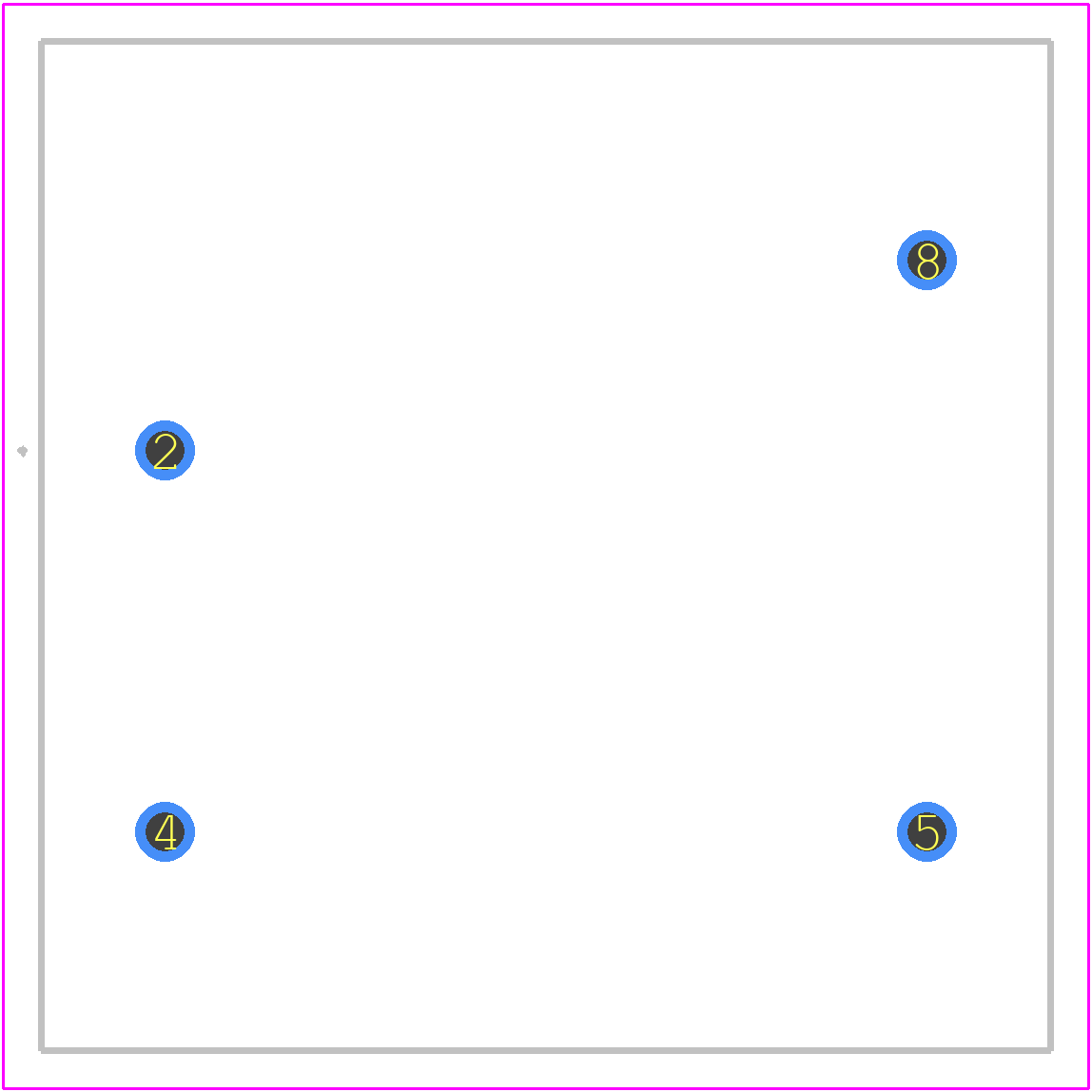

EFD25/9 - Kaschke Components PCB footprint - Other - Other - EFD25/9-1

3D Models

EFD25/9 - Kaschke Components - 3D model - Other - EFD25/9-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for EFD25/9
Part Number EFD25/9
Manufacturer Kaschke Components
Pin Count 4
Part Category Filter
Package Category Other
Footprint Name Other - EFD25/9-1
Released Date Apr 29, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EFD25/9 Details

Manufacturer Part Number:
EFD25/9
Part Life Cycle Code:
Contact Manufacturer
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Manufacturer:
Kaschke Components GmbH
Inductance-Nom (L):
0.0038 µH
Inductor Type:
GENERAL PURPOSE INDUCTOR
Number of Functions:
1
Number of Terminals:
3
Rated Current-Max:
1.25 A
Shape/Size Description:
RECTANGULAR PACKAGE
Shielded:
NO
Surface Mount:
NO
Terminal Placement:
RADIAL
Terminal Shape:
WIRE

Trust Checks

Community Provided

System Verified

Community Approved

EFD25/9 Overview

Use the download button to access the EFD25/9 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EFD25, or try a keyword search, such as Fixed Inductors
