- Part Number EG2201
- Manufacturer E-Switch
- Pin Count 10
- Part Category Switch
- Package Category Other
- Footprint Name Other - EG2201-1
- Released Date Jan 1, 2023
- Last Modified Date Dec 31, 2024 12:37 PM UTC
- Pinout / Pin List Click Here (Member Only)
EG2201 Details
-
Manufacturer Part Number:
EG2201
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.50
-
Manufacturer:
E-Switch Inc
-
Body Breadth:
6.5 mm
-
Body Height:
8 mm
-
Body Length or Diameter:
16 mm
-
JESD-609 Code:
e4
EG2201 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the EG2201 is -20°C to 70°C.
-
To ensure proper debouncing, use a debouncing circuit or a microcontroller with built-in debouncing capabilities. You can also use a capacitor in parallel with the switch to filter out noise.
-
The maximum current rating for the EG2201 is 50mA. Exceeding this rating may lead to premature wear or damage to the switch.
-
Yes, the EG2201 is designed to withstand moderate vibrations. However, it's essential to ensure proper mounting and secure the switch to prevent damage or malfunction.
-
Use a soft, dry brush to gently remove any debris or dust from the switch. Avoid using liquids, chemicals, or abrasive materials that may damage the switch.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
EG2201 Overview

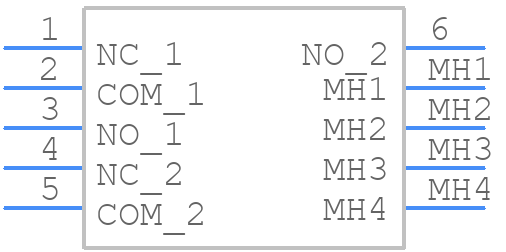

Use the download button to access the EG2201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG220,
or try a keyword search, such as Slide Switches
