- Part Number EG2201A
- Manufacturer E-Switch
- Pin Count 10
- Part Category Switch
- Package Category Other
- Footprint Name Other - EG2201A-3
- Released Date Jun 2, 2020
- Last Modified Date Dec 31, 2024 12:37 PM UTC
- Pinout / Pin List Click Here (Member Only)
EG2201A Details
-
Manufacturer Part Number:
EG2201A
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.50
-
Manufacturer:
E-Switch Inc
-
Body Breadth:
6.5 mm
-
Body Height:
8 mm
-
Body Length or Diameter:
16 mm
-
JESD-609 Code:
e4
EG2201A Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5-1.0 N·m (4.4-8.8 in-lbs) to ensure proper mounting and prevent damage.
-
Yes, the EG2201A is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications with proper mounting and installation.
-
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants. Avoid using chemicals, solvents, or liquids, as they may damage the switch's components.
-
Yes, the EG2201A is rated IP67, making it suitable for outdoor or harsh environments. However, it's essential to ensure proper sealing and protection from extreme temperatures, moisture, and contaminants.
-
The EG2201A is designed to last for at least 10,000 cycles, but its actual lifespan may vary depending on factors such as usage, environment, and maintenance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
EG2201A Overview

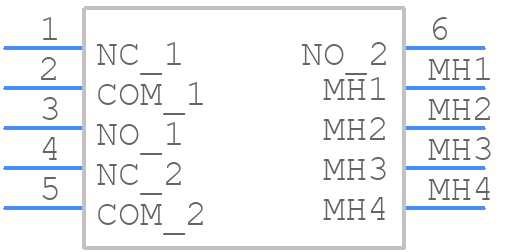

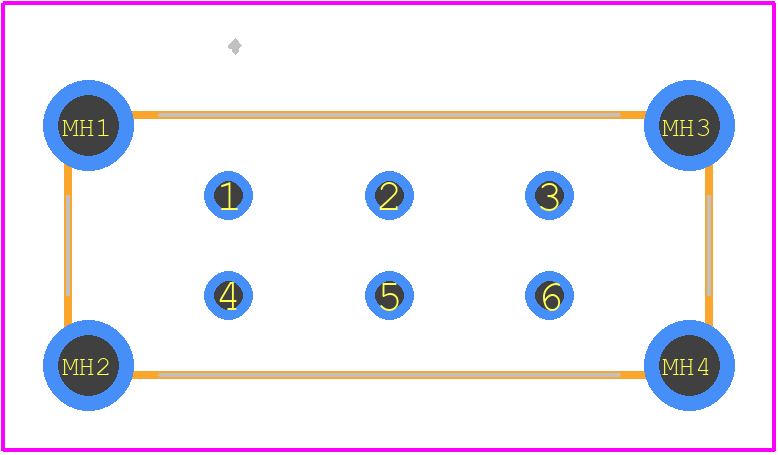

Use the download button to access the EG2201A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG220,
or try a keyword search, such as Slide Switches
