- Part Number EG2201B
- Manufacturer E-Switch
- Pin Count 10
- Part Category Switch
- Package Category Other
- Footprint Name Other - EG2201B-1
- Released Date Feb 5, 2021
- Last Modified Date Dec 31, 2024 12:37 PM UTC
- Pinout / Pin List Click Here (Member Only)
EG2201B Details
-
Manufacturer Part Number:
EG2201B
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.50
-
Manufacturer:
E-Switch Inc
-
Body Breadth:
6.5 mm
-
Body Height:
8 mm
-
Body Length or Diameter:
16 mm
-
JESD-609 Code:
e4
EG2201B Frequently Asked Questions (FAQs)
-
The recommended torque for the switch's screw terminals is 0.5-1.0 N·m (4.4-8.8 in-lbs).
-
Yes, the EG2201B is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications.
-
The recommended wire size for the switch's terminals is 24-18 AWG (0.25-1.5 mm²).
-
Yes, the EG2201B meets the requirements for automotive applications, including temperature range, vibration, and electrical performance.
-
Yes, the EG2201B is designed to operate in temperatures ranging from -40°C to 85°C and can withstand humidity up to 95% RH, making it suitable for outdoor or harsh environments.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
EG2201B Overview

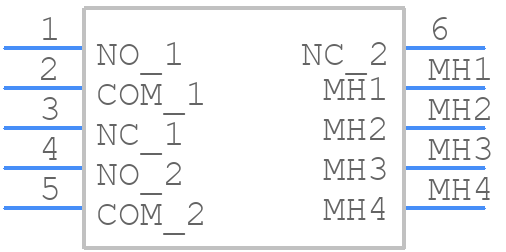

Use the download button to access the EG2201B schematic symbol, PCB footprint, and 3D model.
