EG2207 footprint, schematic symbol and 3D model by E-Switch

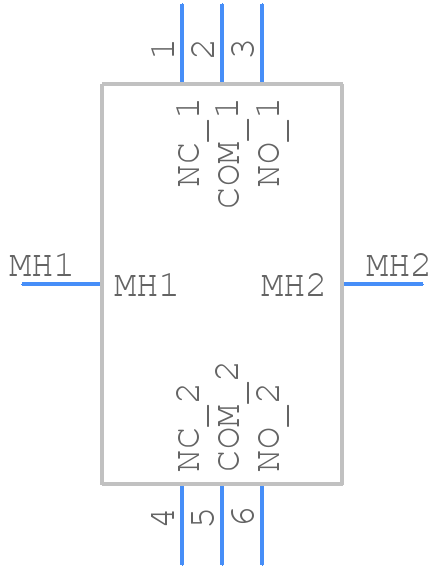

Symbol

PCB Footprints

3D Models

EG2207 Details

The recommended operating temperature range for the EG2207 is -20°C to 70°C. However, it's essential to note that the device can withstand storage temperatures between -40°C to 85°C.
To ensure proper soldering, follow the recommended soldering profile: peak temperature of 240°C, soldering time of 3-5 seconds, and a preheat temperature of 120°C to 150°C. Additionally, use a solder with a melting point of 217°C to 221°C.
The maximum current rating for the EG2207 is 100mA. Exceeding this rating may lead to device failure or reduced lifespan.
Yes, the EG2207 is designed to withstand vibrations up to 10G (10-2000Hz). However, it's essential to ensure proper mounting and secure the device to prevent damage or dislodging.
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the device. Avoid using harsh chemicals, abrasive materials, or excessive moisture, which can damage the device.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the EG2207 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EG220, or try a keyword search, such as Slide Switches
