EG2208 footprint, schematic symbol and 3D model by E-Switch

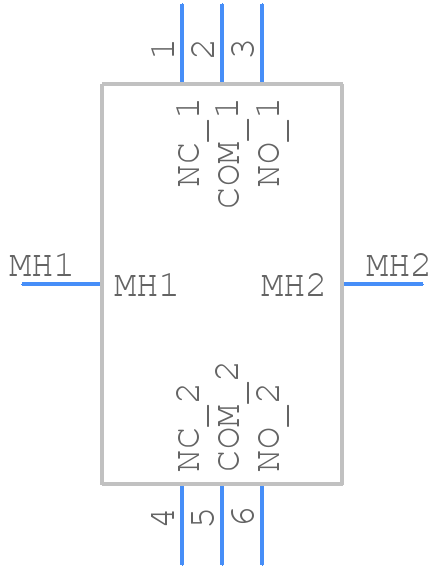

Symbol

PCB Footprints

3D Models

EG2208 Details

The recommended operating temperature range for the EG2208 is -20°C to 70°C (-4°F to 158°F).
To ensure proper mounting, use a recommended PCB layout with a 6.5mm x 3.5mm pad size, and apply a moderate amount of force (around 1-2 N) to secure the switch.
The EG2208 switch is rated for a minimum of 100,000 cycles, but actual lifespan may vary depending on usage, environment, and maintenance.
Yes, the EG2208 is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration environments, but ensure proper mounting and secure the switch to the PCB.
Yes, the EG2208 meets the requirements for automotive applications, including AEC-Q101 qualification, and can be used in automotive systems.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the EG2208 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EG220, or try a keyword search, such as Slide Switches
