EG2210A - E-Switch

Description: SLIDE, 200mA, 30VDC DPDT, On-On Through Hole, Right Angle

Download EG2210A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

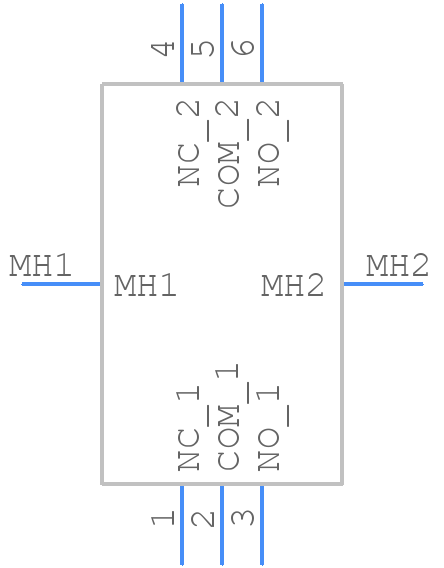

EG2210A - E-Switch - PCB symbol
click to zoom
PCB Footprints
EG2210A - E-Switch PCB footprint - Other - Other - EG2210A-2
click to zoom

EG2210A Details

  • Manufacturer Part Number:

    EG2210A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    E-Switch Inc

  • Body Breadth:

    6.8 mm

  • Body Height:

    4.7 mm

  • Body Length or Diameter:

    12.6 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    2

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    SLIDE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER

EG2210A Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 N·m (4.4-8.8 in-lbs).
  • Yes, the EG2210A is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications.
  • The operating temperature range for the EG2210A is -20°C to 85°C (-4°F to 185°F).
  • Yes, the EG2210A is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum switching current for the EG2210A is 3A at 125VAC or 28VDC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EG2210A Overview

Use the download button to access the EG2210A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EG221, or try a keyword search, such as Slide Switches
