The recommended operating temperature range for the EG2211 is -20°C to 85°C.
To ensure proper debouncing, it is recommended to use an external debouncing circuit or a microcontroller-based debouncing algorithm, as the EG2211 does not have built-in debouncing.
The maximum current rating for the EG2211 is 25mA, and it is recommended to keep the current below this rating to ensure reliable operation.
While the EG2211 is designed to be rugged, it is still important to consider the environmental conditions in which it will be used. For high-vibration or high-shock environments, additional mechanical support or mounting may be necessary to ensure reliable operation.
The correct actuator type for your application depends on factors such as the desired tactile feedback, operating force, and travel distance. Consult the E-Switch Inc datasheet and application notes for guidance on selecting the appropriate actuator type.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EG2211 Overview

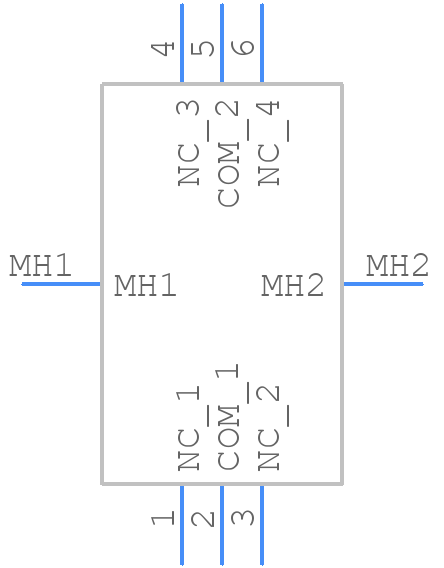

Use the download button to access the EG2211 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG221,
or try a keyword search, such as Slide Switches
