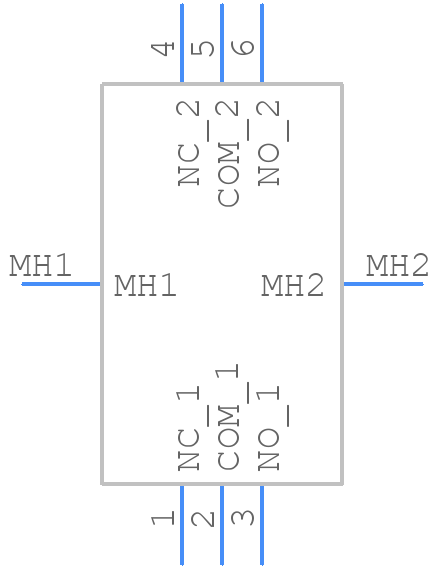

EG2215 footprint, schematic symbol and 3D model by E-Switch

Symbol

PCB Footprints

3D Models

EG2215 Details

The recommended operating temperature range for the EG2215 is -20°C to 70°C.
To ensure proper debouncing, it is recommended to use an external debouncing circuit or implement debouncing in software, as the EG2215 does not have built-in debouncing.
The maximum current rating for the EG2215 is 50mA, and it's recommended to keep the current below this rating to ensure reliable operation.
While the EG2215 is designed to be rugged, it's still important to consider the environmental conditions. For high-vibration or high-shock environments, additional mounting or mechanical considerations may be necessary to ensure reliable operation.
The correct actuator type depends on the specific application requirements. E-Switch Inc offers various actuator types, such as pin plunger, roller plunger, and simulated roller plunger. Consult the datasheet or contact E-Switch Inc for guidance on selecting the appropriate actuator type.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the EG2215 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EG221, or try a keyword search, such as Slide Switches
