The recommended operating temperature range for the EG2219 is -20°C to 70°C, but it can withstand storage temperatures from -40°C to 85°C.
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using chemicals, solvents, or abrasive materials that may damage the switch.
The maximum current rating for the EG2219 is 0.5A at 12V DC, but it's recommended to derate the current based on the operating temperature and other environmental factors.
Yes, the EG2219 is designed to withstand high-vibration and high-shock environments, but it's essential to follow proper mounting and installation procedures to ensure reliable operation.
Consult the E-Switch Inc datasheet and application notes for guidance on selecting the correct actuator type and orientation for your specific application. You may also need to consult with an E-Switch Inc representative or a qualified engineer for custom applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EG2219 Overview

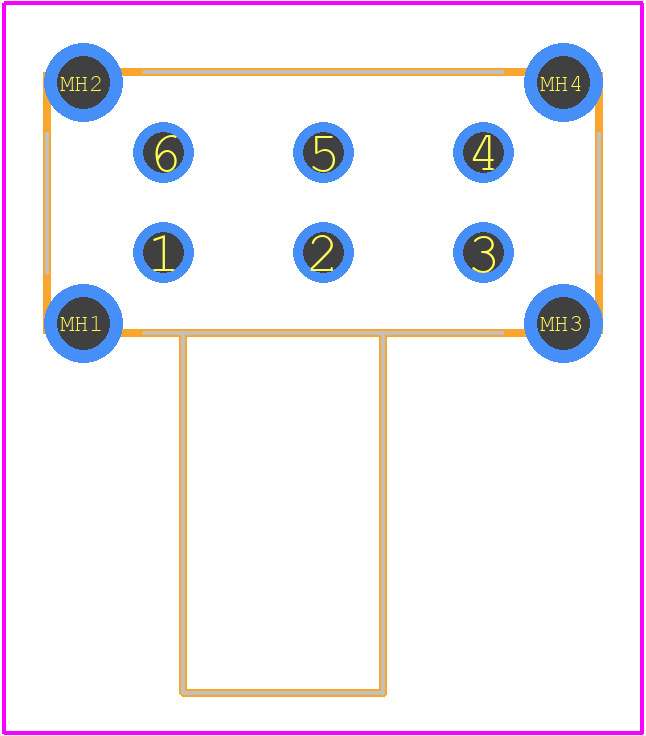

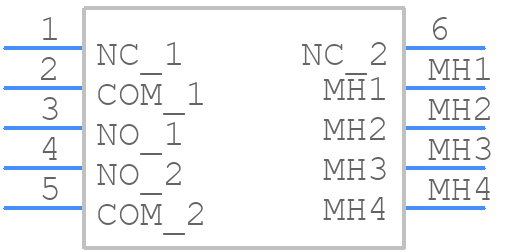

Use the download button to access the EG2219 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG221,
or try a keyword search, such as Slide Switches
