The recommended operating temperature range for the EG2301 is -20°C to 85°C.
To ensure proper debouncing, it is recommended to use a debouncing circuit or a microcontroller with built-in debouncing capabilities. Additionally, the EG2301 has a built-in debouncing feature that can be enabled by connecting the debounce pin to VCC or GND.
The maximum current rating for the EG2301 is 50mA. Exceeding this rating may cause damage to the switch or affect its performance.
Yes, the EG2301 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure the switch remains secure and functional.
The correct actuator type for your application depends on the specific requirements of your design. E-Switch Inc offers various actuator types, including pin plunger, roller, and simulated roller. Consult the datasheet or contact E-Switch Inc for guidance on selecting the appropriate actuator type.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EG2301 Overview

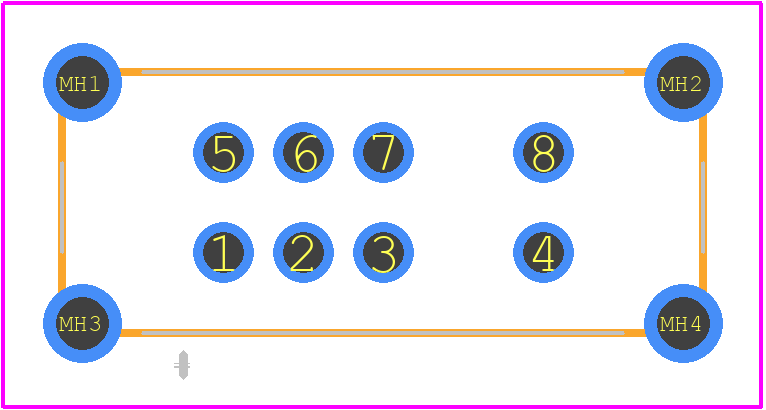

Use the download button to access the EG2301 schematic symbol, PCB footprint, and 3D model.
