EG2301A footprint, schematic symbol and 3D model by E-Switch

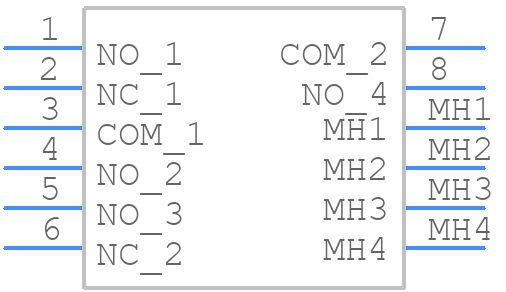

Symbol

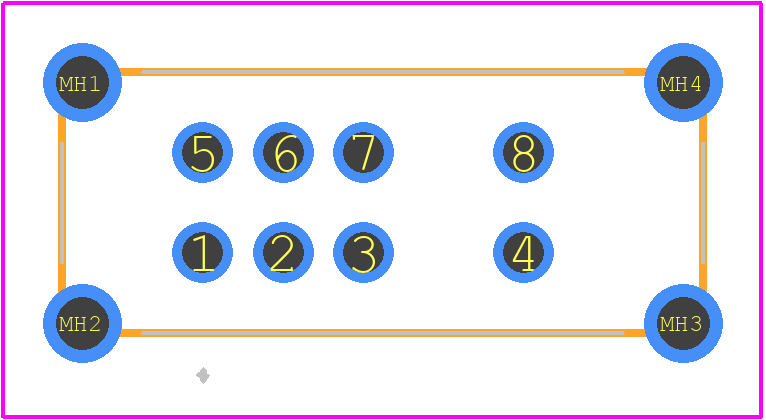

PCB Footprints

3D Models

EG2301A Details

The recommended torque for the switch's screw terminals is 0.5-1.0 N·m (4.4-8.8 lbf·in).
Yes, the EG2301A is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications.
The recommended wire size for the switch's terminals is 24-18 AWG (0.25-1.5 mm²).
Yes, the EG2301A meets the requirements for automotive applications, including temperature range, vibration, and electrical performance.
Yes, the EG2301A is designed to operate in temperatures ranging from -40°C to 85°C and can withstand humidity up to 95% RH, making it suitable for outdoor or harsh environments.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the EG2301A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EG230, or try a keyword search, such as Slide Switches
