Technical Content
Part Image

EG2301B - E-Switch

Description: SLIDE, 200mA, 30VDC DP3T, On-On-On Through Hole

Download EG2301B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

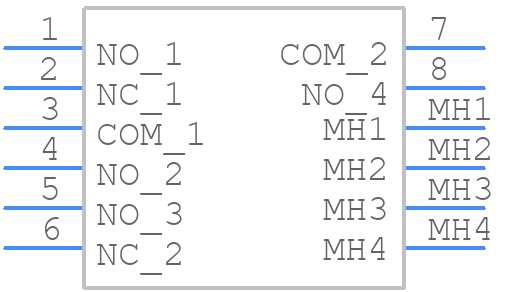

EG2301B - E-Switch - PCB symbol
click to zoom
PCB Footprints

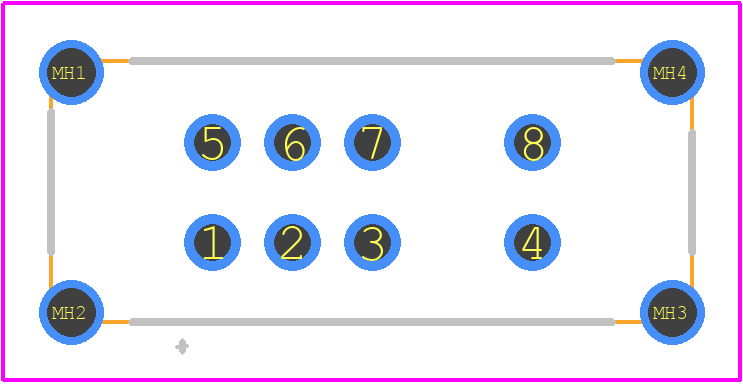

EG2301B - E-Switch PCB footprint - Other - Other - EG2301B-2
click to zoom
3D Models
EG2301B - E-Switch - 3D model - Other - EG2301B-2
click to zoom

EG2301B Details

  • Manufacturer Part Number:

    EG2301B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    E-Switch Inc

  • Body Breadth:

    6.5 mm

  • Body Height:

    8 mm

  • Body Length or Diameter:

    16 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DP3T

  • Switch Type:

    SLIDE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER

EG2301B Frequently Asked Questions (FAQs)

  • The recommended torque for the switch's screw terminals is 0.5-1.0 N·m (4.4-8.8 in-lbs).
  • Yes, the EG2301B is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications.
  • The operating temperature range for the EG2301B is -20°C to 85°C (-4°F to 185°F).
  • Yes, the EG2301B is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum switching current for the EG2301B is 3A at 125VAC or 28VDC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EG2301B Overview

Use the download button to access the EG2301B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG230, or try a keyword search, such as Slide Switches
