The recommended operating temperature range for the EG2305 is -20°C to 85°C.
To ensure proper debouncing, use a debouncing circuit or a microcontroller with built-in debouncing capabilities. You can also use a capacitor and resistor in series to filter out switch bounce.
The maximum current rating for the EG2305 is 50mA. Exceeding this rating may lead to premature wear or damage to the switch.
Yes, the EG2305 is designed to withstand moderate vibration. However, it's essential to ensure proper mounting and secure the switch to prevent damage or malfunction.
Use a soft, dry brush or a lint-free cloth to gently remove any debris or dust from the switch. Avoid using liquids, chemicals, or abrasive materials that may damage the switch.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EG2305 Overview

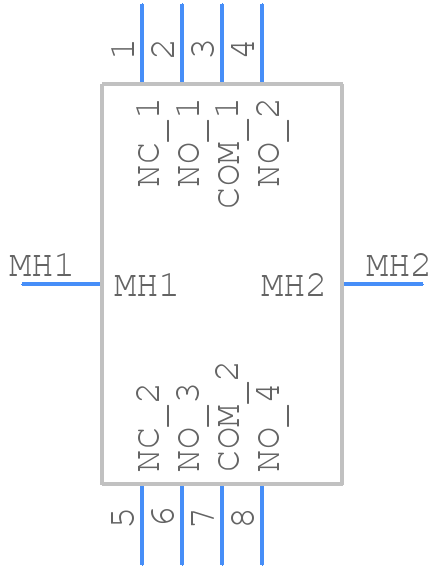

Use the download button to access the EG2305 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG230,
or try a keyword search, such as Slide Switches
