EG2305A footprint, schematic symbol and 3D model by E-Switch

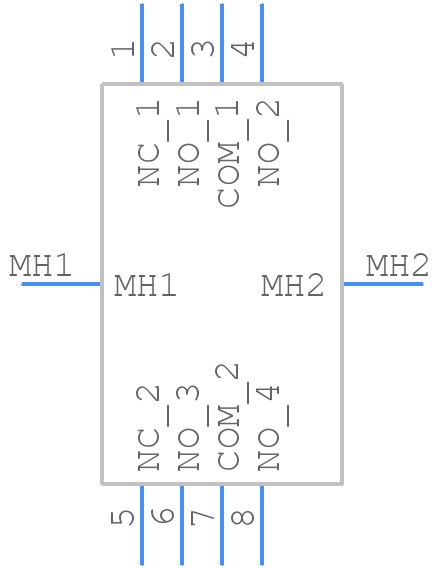

Symbol

PCB Footprints

3D Models

EG2305A Details

The recommended torque is 0.5-1.0 N·m (4.4-8.8 in-lbs) to ensure secure connections.
Yes, the EG2305A is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications with proper mounting and installation.
The EG2305A can operate in temperatures ranging from -20°C to 85°C (-4°F to 185°F), but the recommended operating temperature range is -10°C to 70°C (14°F to 158°F) for optimal performance.
Yes, the EG2305A is compatible with lead-free soldering processes, and E-Switch Inc recommends using a peak reflow temperature of 260°C (500°F) for optimal results.
E-Switch Inc recommends using a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using harsh chemicals, abrasive materials, or high-pressure washes, as they may damage the switch.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the EG2305A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EG230, or try a keyword search, such as Slide Switches
