The recommended operating temperature range for the EG2308 is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
To ensure proper debouncing, it's recommended to use an external debouncing circuit or a microcontroller with built-in debouncing capabilities. The datasheet provides a suggested debouncing circuit diagram.
The maximum current rating for the EG2308 is 50mA at 12VDC. Exceeding this rating may lead to premature switch failure.
Yes, the EG2308 is designed to withstand high-vibration environments. It has a vibration rating of 10G (10-2000Hz) and a shock rating of 100G (11ms).
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using chemicals, solvents, or liquids, as they may damage the switch or its components.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EG2308 Overview

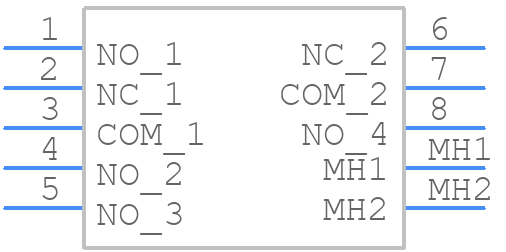

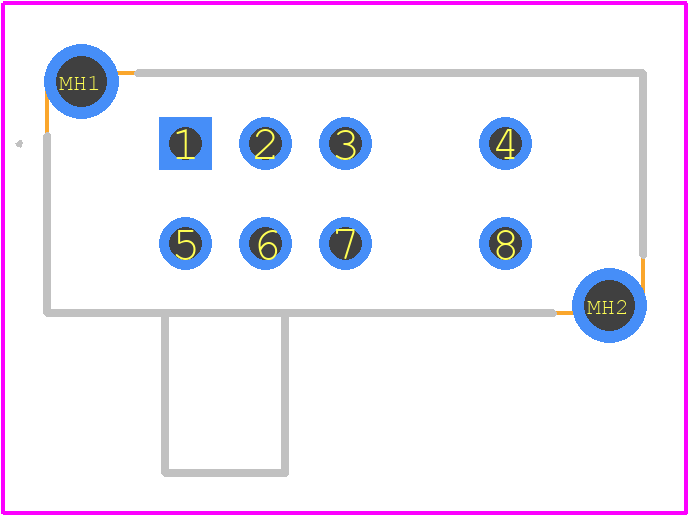

Use the download button to access the EG2308 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG230,
or try a keyword search, such as Slide Switches
