EG2308A - E-Switch

EG2308A Frequently Asked Questions (FAQs)

• What is the recommended torque for the switch's actuator?
  The recommended torque for the EG2308A's actuator is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in). Over-tightening may damage the switch.
• How do I ensure the switch's reliability in high-vibration environments?
  To ensure reliability in high-vibration environments, it's recommended to use a switch with a locking mechanism, such as the EG2308A-L, and secure it to the PCB using a suitable adhesive or mechanical fastening method.

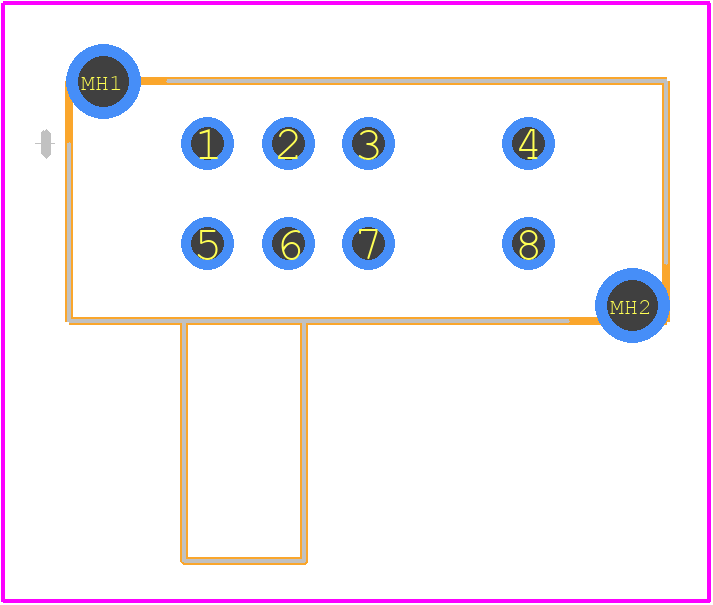

• What is the recommended PCB layout and land pattern for the EG2308A?
  The recommended PCB layout and land pattern for the EG2308A can be found in the E-Switch Inc. application note AN-101, which provides detailed guidelines for optimal PCB design and assembly.
• Can the EG2308A be used in applications requiring UL or ENEC certification?
  Yes, the EG2308A is certified to meet UL and ENEC standards for safety and performance. However, it's essential to ensure that the specific application and design meet the relevant certification requirements.
• How do I handle ESD protection when using the EG2308A?
  To ensure ESD protection, it's recommended to follow proper handling and storage procedures for the EG2308A, and consider adding ESD protection devices, such as TVS diodes, in the circuit design.
