EG2310A - E-Switch

Description: SLIDE, 200mA, 30VDC DP3T, On-On-On Through Hole, Right Angle

Download EG2310A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

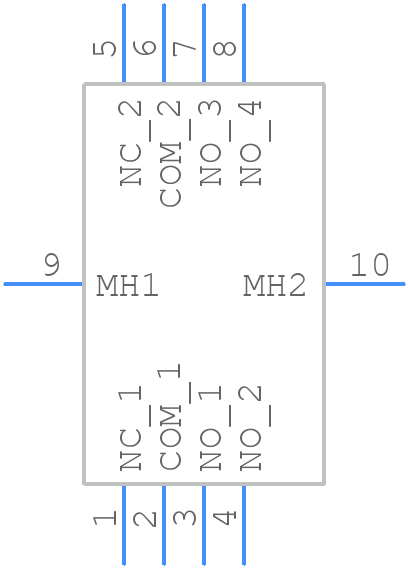

EG2310A - E-Switch - PCB symbol
click to zoom
PCB Footprints

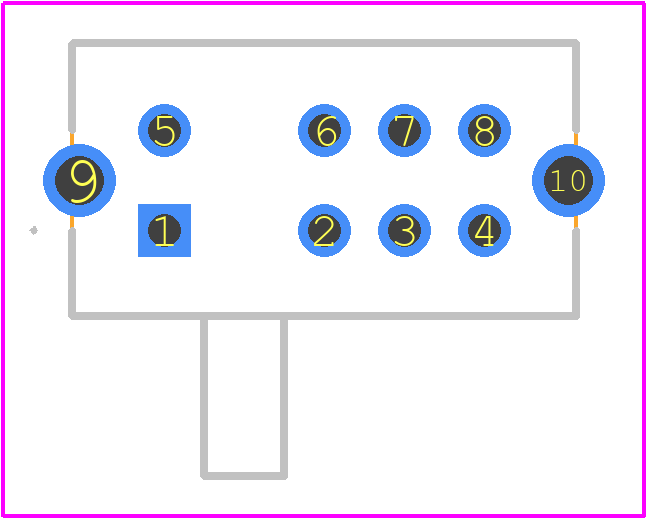

EG2310A - E-Switch PCB footprint - Other - Other - EG2310A-3
click to zoom
3D Models
EG2310A - E-Switch - 3D model - Other - EG2310A-3
click to zoom

EG2310A Details

  • Manufacturer Part Number:

    EG2310A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    E-Switch Inc

  • Actuator Length:

    0.157 inch

  • Actuator Type:

    SLIDE

  • Body Breadth:

    6.8 mm

  • Body Height:

    4.7 mm

  • Body Length or Diameter:

    12.6 mm

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    SILVER

  • Contact Function:

    OFF-ON

  • Contact Resistance:

    0.02 mΩ

  • Dielectric Withstand Volts:

    500VAC V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    SILVER

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PCB Hole Count:

    10

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DP3T

  • Switch Type:

    SLIDE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Terminal Length:

    0.122 inch

  • Termination Type:

    SOLDER

EG2310A Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.0 N·m (4.4-8.8 lb·in) to ensure secure connections.
  • Yes, the EG2310A is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and can be used in high-vibration applications with proper mounting and installation.
  • The EG2310A can operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F), but the operating temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the EG2310A is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in environmentally conscious designs.
  • Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using harsh chemicals, abrasive materials, or excessive moisture, which can damage the switch or compromise its performance.
