EG2315 footprint, schematic symbol and 3D model by E-Switch

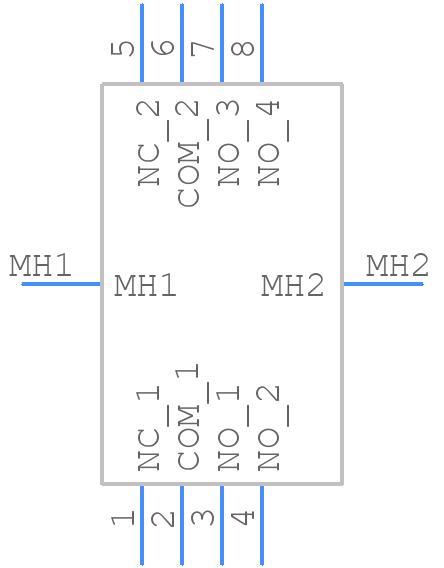

Symbol

PCB Footprints

3D Models

EG2315 Details

The recommended operating temperature range for the EG2315 is -20°C to 85°C, but it can withstand storage temperatures from -40°C to 100°C.
To ensure proper debouncing, use a debouncing circuit or a microcontroller with built-in debouncing capabilities. You can also use a capacitor in parallel with the switch to filter out noise.
The maximum current rating for the EG2315 is 50mA at 12VDC. Exceeding this rating may lead to premature wear or damage to the switch.
Yes, the EG2315 is designed to withstand vibrations up to 10G (10-2000Hz). However, it's essential to ensure proper mounting and secure the switch to prevent damage or malfunction.
Yes, the EG2315 meets the requirements for automotive applications, including resistance to extreme temperatures, vibrations, and humidity. However, it's essential to verify compliance with specific automotive standards and regulations.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the EG2315 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EG231, or try a keyword search, such as Slide Switches
