The recommended torque for the EG2319's actuator is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in) to ensure proper operation and prevent damage.
Yes, the EG2319 is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz, making it suitable for use in high-vibration environments.
E-Switch recommends cleaning the EG2319 with a soft, dry brush or a lint-free cloth to remove any debris or contaminants. Avoid using chemicals, solvents, or liquids, as they may damage the switch's components.
Yes, the EG2319 is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for 10 seconds or less.
The EG2319 is rated for a minimum of 10,000 cycles, but its actual lifespan may vary depending on factors such as operating conditions, usage, and environmental factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EG2319 Overview

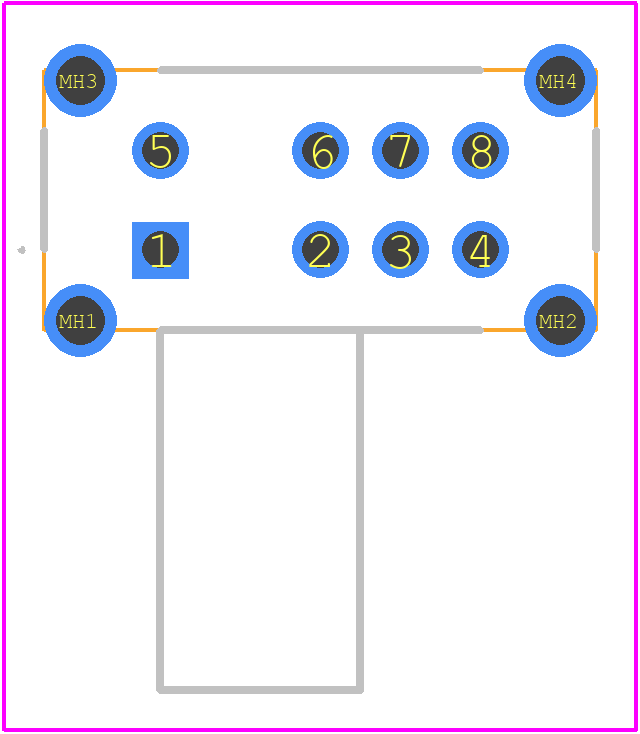

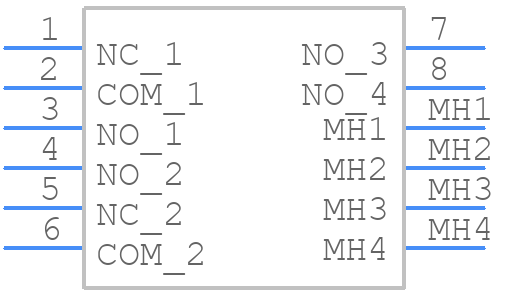

Use the download button to access the EG2319 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG231,
or try a keyword search, such as Slide Switches
