The recommended torque is 0.5-1.0 N·m (4.4-8.8 in-lbs) to ensure proper mounting and prevent damage to the switch or PCB.
To ensure reliable switching performance in high-vibration environments, consider using a switch with a higher operating force (e.g., 2.5 N) and a shorter travel distance (e.g., 1.5 mm). Additionally, ensure the switch is properly mounted and secured to the PCB.
Use a soft, dry brush to gently remove any debris or contaminants from the switch. Avoid using liquids, chemicals, or compressed air, which can damage the switch or compromise its performance.
Yes, the EG4208A is suitable for sealed or hermetically sealed applications. However, ensure that the switch is properly cleaned and dried before sealing to prevent moisture ingress.
The maximum allowable temperature for the switch during soldering is 260°C (500°F) for a maximum of 10 seconds. Exceeding this temperature or time may damage the switch.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EG4208A Overview

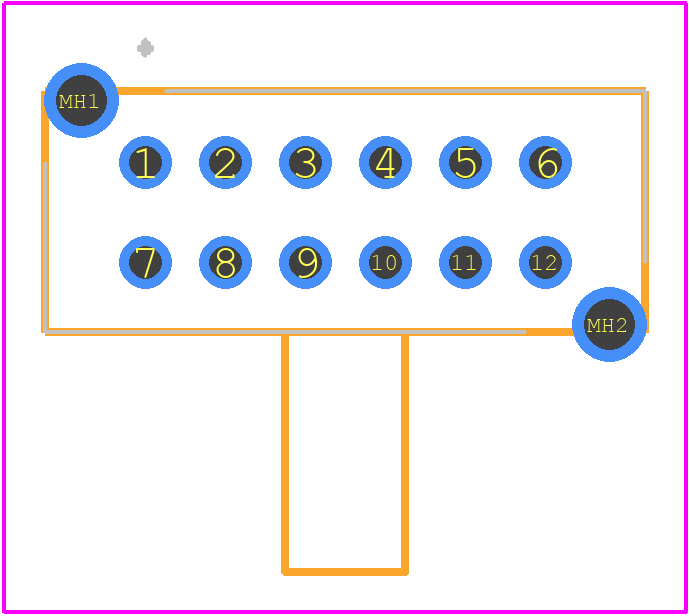

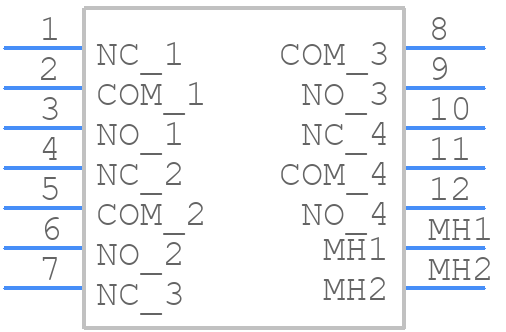

Use the download button to access the EG4208A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG420,
or try a keyword search, such as Slide Switches
