The recommended operating temperature range for the EG4319 is -20°C to 70°C, but it can withstand storage temperatures from -40°C to 85°C.
To ensure proper mounting, use a soldering iron with a temperature of 250°C to 270°C, and apply a moderate amount of soldering force. Make sure the switch is aligned with the PCB pads and avoid applying excessive force, which can damage the switch.
Use a soft, dry brush to remove any debris or dust from the switch. Avoid using chemicals, solvents, or liquids, as they can damage the switch's electrical contacts or compromise its reliability.
Yes, the EG4319 is designed to withstand moderate levels of vibration and shock. However, it's essential to follow proper mounting and soldering procedures to ensure the switch remains secure and functional in such environments.
To prevent ESD damage, handle the EG4319 with ESD-protective equipment, such as wrist straps or mats. Ensure that the PCB and components are properly grounded, and avoid touching the switch's electrical contacts or pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EG4319 Overview

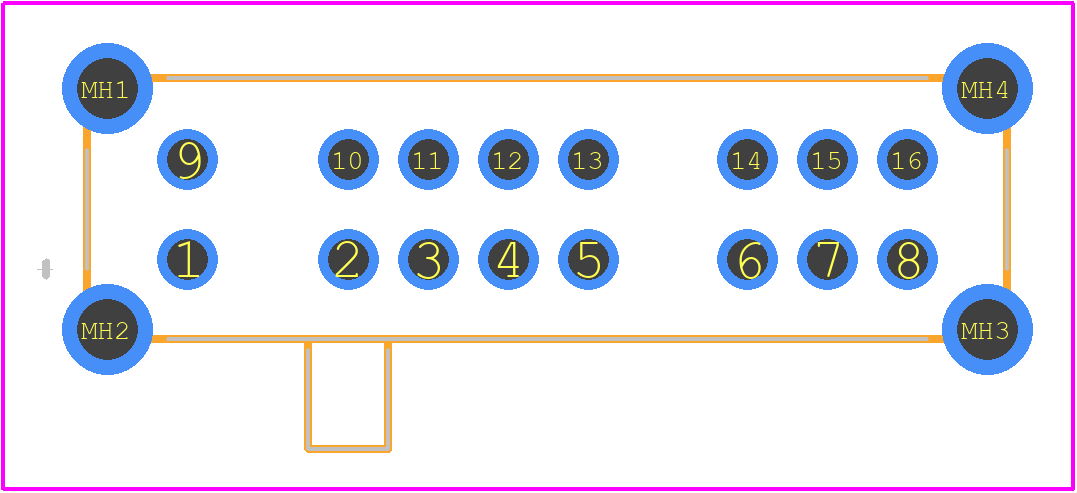

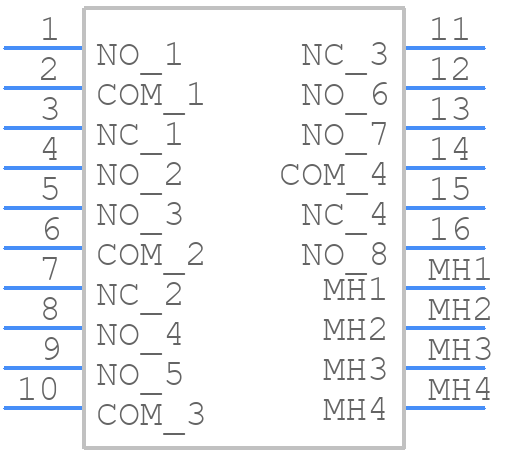

Use the download button to access the EG4319 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EG431,
or try a keyword search, such as Slide Switches
