EHT-108-01-F-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

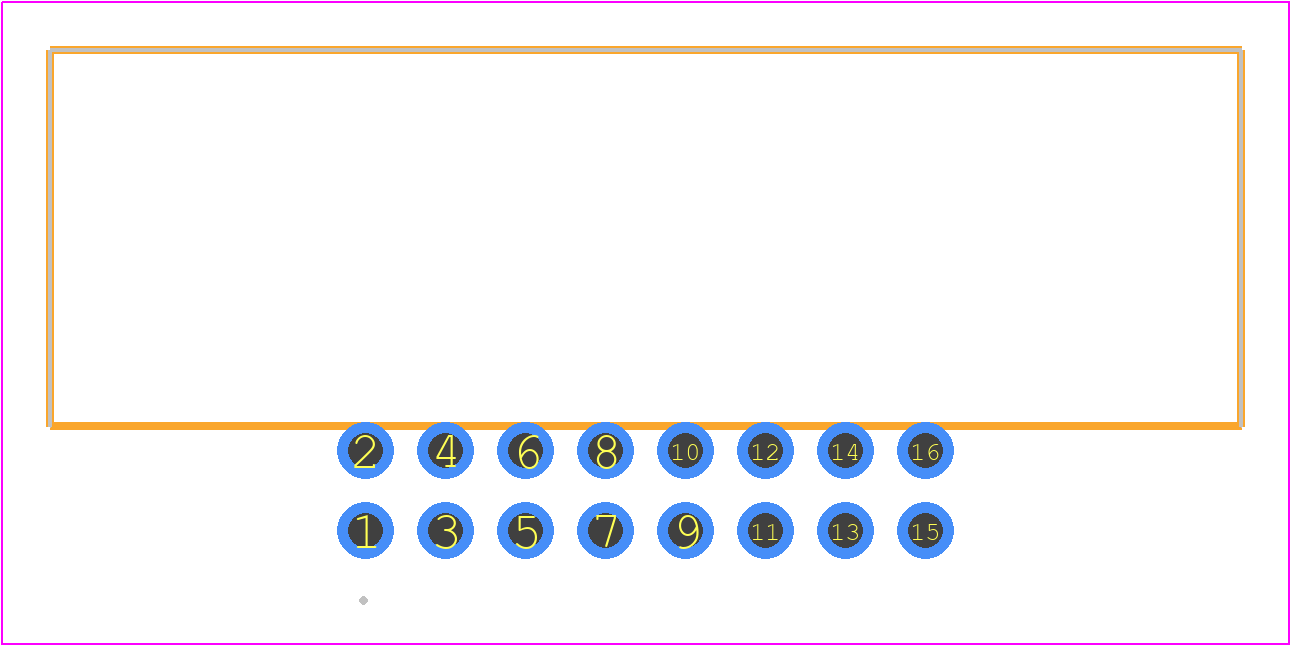

PCB Footprints

EHT-108-01-F-D-RA - SAMTEC PCB footprint - Other - Other - EHT-108-01-XX-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EHT-108-01-F-D-RA
Part Number EHT-108-01-F-D-RA
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - EHT-108-01-XX-D-RA
Released Date Jun 19, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

EHT-108-01-F-D-RA Details

Manufacturer Part Number:
EHT-108-01-F-D-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
POLARIZED
Body Breadth:
0.3 inch
Body Depth:
0.508 inch
Body Length:
1.173 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (3)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.079 inch
Mixed Contacts:
NO
Mounting Option 1:
LATCH & EJECT
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.0066 mm
Plating Thickness:
3u inch
Polarization Key:
POLARIZED HOUSING
Reference Standard:
UL
Terminal Length:
0.12 inch
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
16
UL Flammability Code:
94V-0

EHT-108-01-F-D-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on the EHT-108-01-F-D-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the EHT-108-01-F-D-RA connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable operation.
The maximum operating temperature for the EHT-108-01-F-D-RA connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The EHT-108-01-F-D-RA connector is not sealed and is not intended for use in humid or wet environments. If exposure to moisture is a concern, consider using a sealed or waterproof connector or applying a conformal coating to the connector.
The recommended mating cycle for the EHT-108-01-F-D-RA connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

EHT-108-01-F-D-RA Overview

Use the download button to access the EHT-108-01-F-D-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EHT-1, or try a keyword search, such as Headers and Edge Type Connectors
