EJH-111-01-L-D-TH footprint, schematic symbol and 3D model by SAMTEC

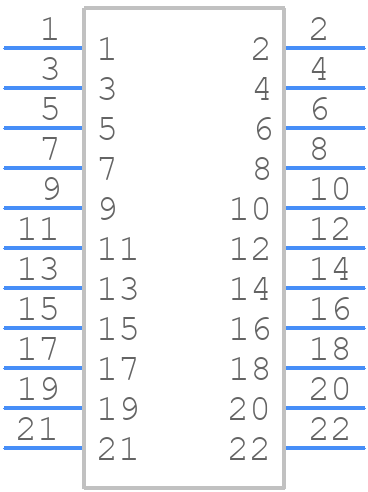

Symbol

click to zoom

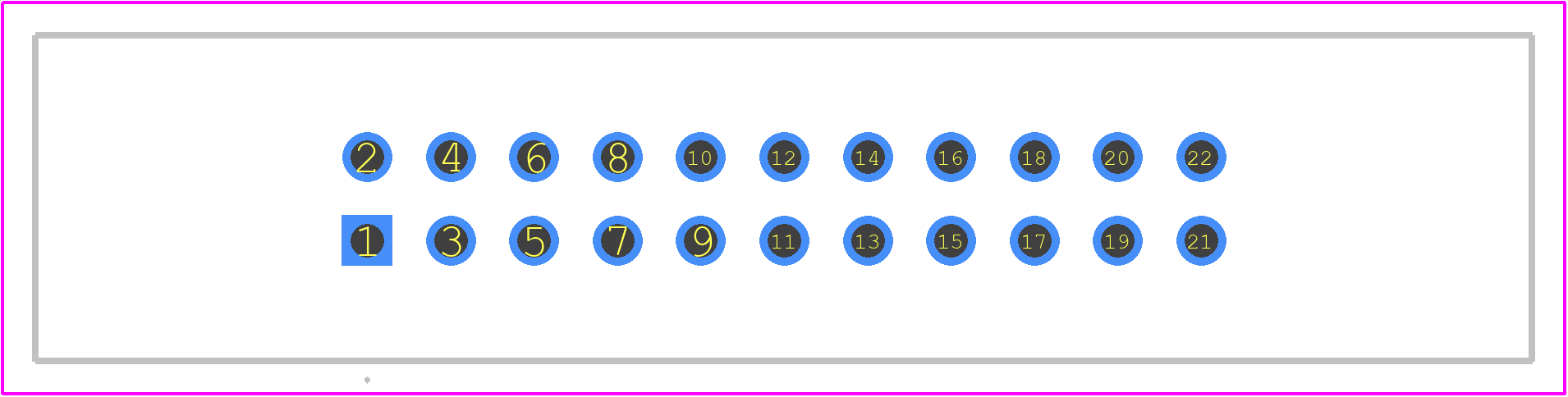

PCB Footprints

EJH-111-01-L-D-TH - SAMTEC PCB footprint - Other - Other - EJH-111-01-L-D-TH-2

click to zoom

3D Models

EJH-111-01-L-D-TH - SAMTEC - 3D model - Other - EJH-111-01-L-D-TH-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EJH-111-01-L-D-TH
Part Number EJH-111-01-L-D-TH
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - EJH-111-01-L-D-TH-2
Released Date Jul 19, 2024
Last Modified Date Jul 19, 2024 4:30 AM UTC
Pinout / Pin List Click Here (Member Only)

EJH-111-01-L-D-TH Details

Manufacturer Part Number:
EJH-111-01-L-D-TH
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
Connector Type:
BOARD CONNECTOR
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
JESD-609 Code:
e3

Trust Checks

Community Provided

System Verified

Community Approved

EJH-111-01-L-D-TH Overview

Use the download button to access the EJH-111-01-L-D-TH schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EJH-1, or try a keyword search, such as Headers and Edge Type Connectors
