The recommended torque value is 0.5-1.0 Nm (5-10 in-lbs) for the screws on the EK508V-06P connector. However, it's always best to consult the manufacturer's instructions or contact Dinkle Enterprises directly for specific guidance.
While the EK508V-06P connector is designed to be rugged, it's not specifically rated for outdoor or harsh environment applications. If you need a connector for such applications, consider using a connector with IP67 or higher rating, or consult with Dinkle Enterprises for a custom solution.
The EK508V-06P connector is designed for general-purpose applications and may not be suitable for high-vibration or high-shock environments. If you need a connector for such applications, consider using a connector with specific vibration or shock resistance ratings, or consult with Dinkle Enterprises for a custom solution.
The maximum operating temperature range for the EK508V-06P connector is typically -40°C to 105°C (-40°F to 221°F). However, it's always best to consult the manufacturer's instructions or contact Dinkle Enterprises directly for specific guidance.
Yes, the EK508V-06P connector is RoHS and REACH compliant, meeting the European Union's directives for restriction of hazardous substances and registration, evaluation, authorization, and restriction of chemicals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EK508V-06P Overview

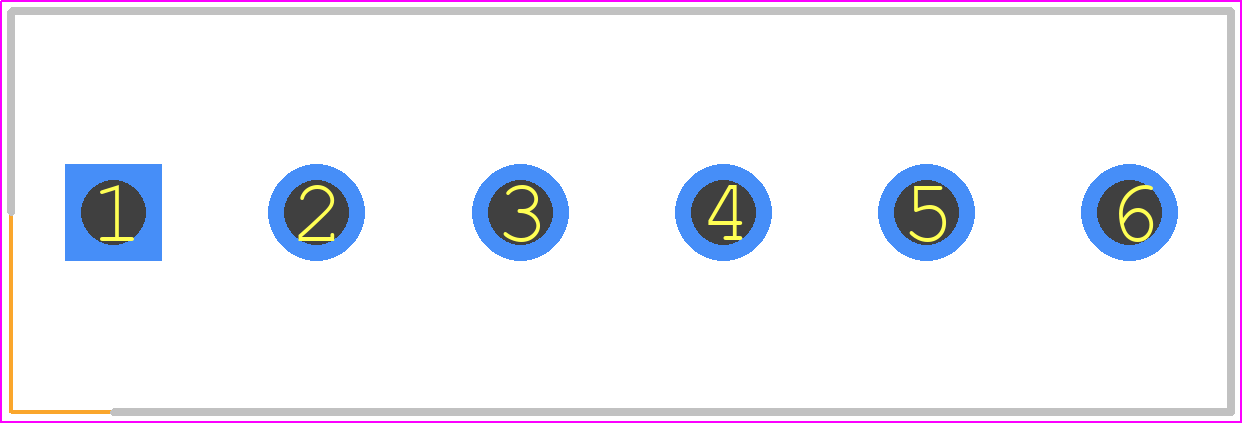

Use the download button to access the EK508V-06P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EK508,
or try a keyword search, such as Terminals and Terminal Blocks
