EKMB1303111K - Panasonic

EKMB1303111K Frequently Asked Questions (FAQs)

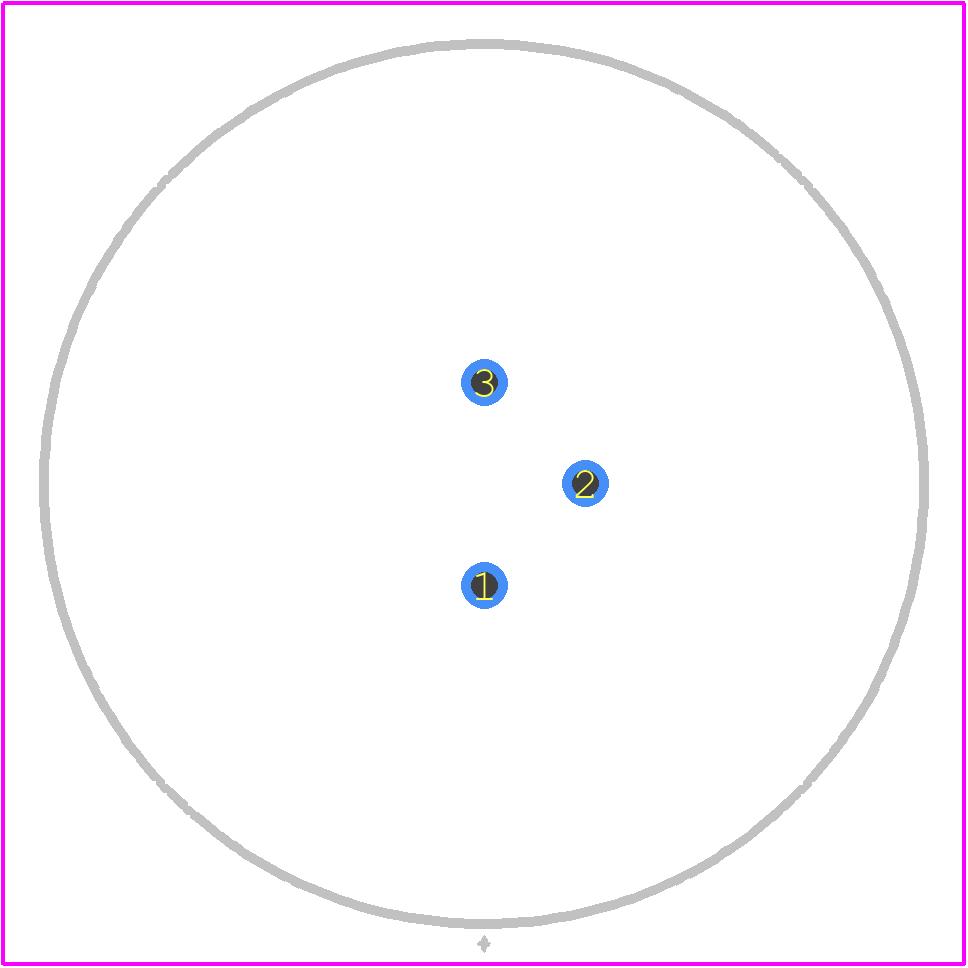

• What is the recommended land pattern for EKMB1303111K?
  The recommended land pattern for EKMB1303111K can be found in the Panasonic Electronic Components' recommended footprint document or by contacting their technical support. A general guideline is to follow the IPC-7351 standard for surface mount components.
• How do I handle the EKMB1303111K during assembly to prevent damage?
  To prevent damage, handle the EKMB1303111K by the edges, avoid touching the component's leads or body, and use an anti-static wrist strap or mat. Also, ensure the assembly area is clean and free from debris.
• What is the maximum storage temperature for EKMB1303111K?
  The maximum storage temperature for EKMB1303111K is typically 40°C (104°F) with a relative humidity of 90% or less. Storage beyond these conditions may affect the component's reliability and performance.
• Can I use the EKMB1303111K in a high-vibration environment?
  The EKMB1303111K is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Panasonic Electronic Components' technical support or perform additional testing to ensure the component's reliability and performance.
• What is the recommended soldering profile for EKMB1303111K?
  The recommended soldering profile for EKMB1303111K follows the IPC-J-STD-020 standard. A typical profile includes a peak temperature of 260°C (500°F) with a dwell time of 10-30 seconds. However, it's recommended to consult with Panasonic Electronic Components' technical support or the datasheet for specific guidance.
