Description:The EL1881 video sync separator is manufactured using Elantec's high performance analog CMOS process. This device extracts sync timing information from both standard and non-standard video input. It provides composite sync, vertical sync, burst/back porch timing, and odd/even field detection. Fixed 70mV sync tip slicing provides sync edge detection when the video input level is between 0. 5VP-P and -2VP-P (sync tip amplitude 143mV to 572mV). A single external resistor sets all internal timing to adjust for
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
Renesas recommends following the IEC 61967 standard for EMC compliance, and provides guidelines for PCB design, component selection, and shielding in their application notes and design guides.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at extreme temperatures. Consult the datasheet and application notes for specific derating guidelines.
Yes, the EL1881CSZ-T7A is qualified for automotive and high-reliability applications. Renesas provides additional documentation, such as PPAP (Production Part Approval Process) and AEC-Q100 certification, to support these applications.
Renesas provides a troubleshooting guide in their application notes, which includes steps for identifying and resolving common issues, such as power supply noise, signal integrity, and thermal-related problems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL1881CSZ-T7A Overview

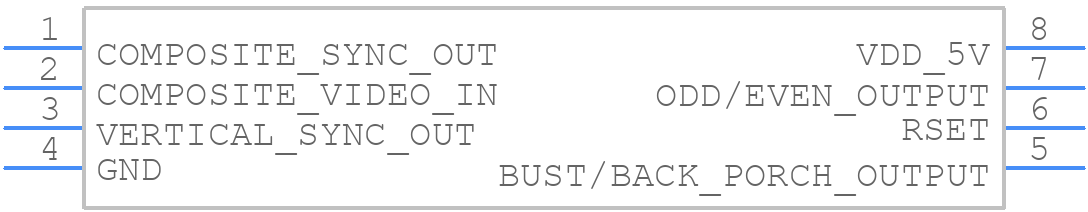

Use the download button to access the EL1881CSZ-T7A schematic symbol, PCB footprint, and 3D model.
