Description:The EL1883 video sync separator is manufactured using Elantec's high performance analog CMOS process. This device extracts sync timing information from both standard and non-standard video input and also in the presence of Macrovision pulses. It provides composite sync, vertical sync, burst/back porch timing, and horizontal outputs. Fixed 70mV sync tip slicing provides sync edge detection when the video input level is between 0. 5VP-P and 2VP-P (sync tip amplitude 143mV to 572mV). A single external resistor
Renesas recommends a thermal pad on the bottom of the package, connected to a copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
Renesas recommends following the thermal design guidelines, using a heat sink if necessary, and ensuring good airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the temperature and implement thermal protection mechanisms.
Although the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 6.5V. Exceeding this voltage can cause permanent damage to the device.
Renesas recommends following the moisture sensitivity level (MSL) guidelines for the device. The EL1883ISZ-T13 has an MSL rating of 3, which means it can withstand a maximum of 168 hours of exposure to 30°C/60% RH. Proper handling, storage, and packaging are crucial to prevent moisture-related issues.
Renesas recommends checking the input voltage, output load, and feedback resistors for any issues. Ensure that the output capacitor is properly selected and placed close to the device. Also, verify that the device is not overheating, and the thermal shutdown is not triggered.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL1883ISZ-T13 Overview

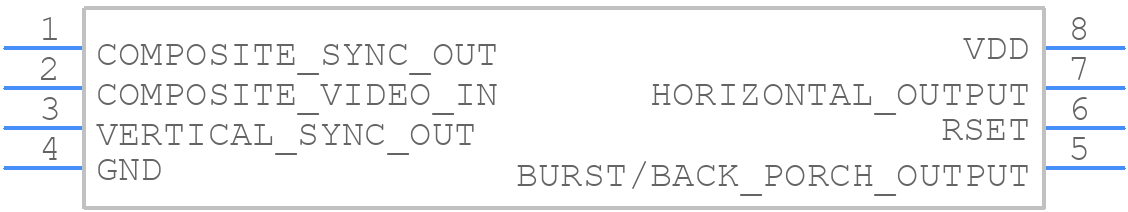

Use the download button to access the EL1883ISZ-T13 schematic symbol, PCB footprint, and 3D model.
