EL2125CSZ-T13 - Renesas Electronics

Description: The EL2125 is an ultra-low noise, wideband amplifier that runs on half the supply current of competitive parts. It is intended for use in systems such as ultrasound imaging where a very small signal needs to be amplified by a large amount without adding significant noise. Its low power dissipation enables it to be packaged in the tiny SOT-23 package, which further helps systems where many input channels create both space and power dissipation problems. The EL2125 is stable for gains of 10 and greater and us

Download EL2125CSZ-T13 Model

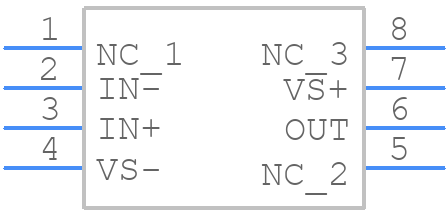

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EL2125CSZ-T13 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8. 15E
click to zoom
3D Models
EL2125CSZ-T13 - Renesas Electronics  - 3D model - Small Outline Packages - M8. 15E
click to zoom

EL2125CSZ-T13 Details

  • Manufacturer Part Number:

    EL2125CSZ-T13

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-09-28

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    175 MHz

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    106 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    2 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.727 mm

  • Slew Rate-Min:

    150 V/us

  • Slew Rate-Nom:

    185 V/us

  • Supply Current-Max:

    11 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    150000

  • Voltage Gain-Min:

    10000

  • Wideband:

    YES

  • Width:

    3.91 mm

EL2125CSZ-T13 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the EL2125CSZ-T13 is -40°C to 125°C.
  • To ensure proper power-on and power-off, follow the recommended power-up and power-down sequences outlined in the datasheet, and make sure to meet the required voltage and current specifications.
  • The maximum allowable voltage on the input pins of the EL2125CSZ-T13 is 5.5V, and it's recommended to keep the input voltage within the specified range to prevent damage or malfunction.
  • To prevent electrostatic discharge (ESD) damage, handle the EL2125CSZ-T13 with an anti-static wrist strap or mat, and ensure that the device is properly grounded during assembly and testing.
  • Follow the recommended PCB layout and routing guidelines outlined in the datasheet, and consider using a 4-layer PCB with a solid ground plane to minimize noise and ensure signal integrity.
