Description:The EL4583A extracts timing from video sync in NTSC, PAL, and SECAM systems, and non-standard formats, or from computer graphics operating at higher scan rates. Timing adjustment is via an external resistor. Input without valid vertical interval (no serration pulses) produces a default vertical output. Outputs are: composite sync, vertical sync, filter, burst/back porch, horizontal, no signal detect, level, and odd/even output (in interlaced scan formats only). The EL4583A sync slice level is set to the mid
A good PCB layout for the EL4583AISZ should minimize noise and ensure proper power supply decoupling. Place the device close to the power supply, use a solid ground plane, and keep analog and digital signals separate. Additionally, use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a 0.1uF capacitor between VCC and AVCC.
To ensure the EL4583AISZ operates within its recommended operating conditions, verify that the power supply voltage (VCC) is within the range of 2.7V to 5.5V, and the ambient temperature is between -40°C and +85°C. Also, ensure that the input signals are within the specified voltage ranges and that the device is not exposed to excessive noise or EMI.
The EL4583AISZ can drive a maximum capacitive load of 100pF. Exceeding this limit may cause instability or oscillations in the output signal. If a higher capacitive load is required, consider adding a buffer or using a device with a higher drive capability.
To troubleshoot issues with the EL4583AISZ, start by verifying the power supply voltage and ensuring it is within the recommended range. Check the input signals for noise or distortion, and ensure that the device is properly decoupled. Use an oscilloscope to monitor the output signal and look for signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance or contact Renesas support.
The EL4583AISZ is a general-purpose device and may not be suitable for high-reliability or safety-critical applications. Renesas offers other devices with enhanced reliability and safety features, such as the RL78 or RX families, which may be more suitable for these types of applications. Consult with Renesas support to determine the best device for your specific requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL4583AISZ Overview

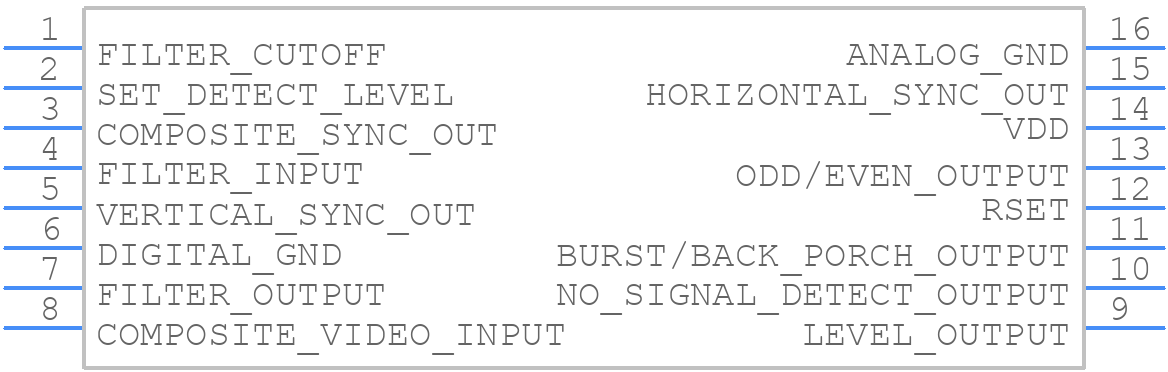

Use the download button to access the EL4583AISZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL458,
or try a keyword search, such as Signal Separator ICs
