Description:The EL4583 extracts timing from video sync in NTSC, PAL, and SECAM systems, and non standard formats, or from computer graphics operating at higher scan rates. Timing adjustment is via an external resistor. Input without valid vertical interval (no serration pulses) produces a default vertical output. Outputs are: composite sync, vertical sync, filter, burst/back porch, horizontal, no signal detect, level, and odd/even output (in interlaced scan formats only). The EL4583 sync slice level is set to the mid-p
A good PCB layout for the EL4583CSZ-T13 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper powering and biasing of the EL4583CSZ-T13, make sure to provide a stable and regulated power supply voltage (VCC) within the recommended range of 2.7V to 5.5V. Also, ensure that the input voltage (VIN) is within the recommended range of 2.7V to 5.5V and that the bias voltage (VBIAS) is set to the recommended value of 1.25V.
The EL4583CSZ-T13 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
To troubleshoot issues with the EL4583CSZ-T13, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the power supply voltage and bias voltage are within the recommended ranges. If the issue persists, check for any signs of overheating, and ensure that the device is properly cooled. Finally, consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the EL4583CSZ-T13 is suitable for use in high-reliability and safety-critical applications, such as automotive and industrial systems, due to its high reliability and robustness. However, it's essential to follow proper design and testing procedures to ensure that the device meets the required safety and reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL4583CSZ-T13 Overview

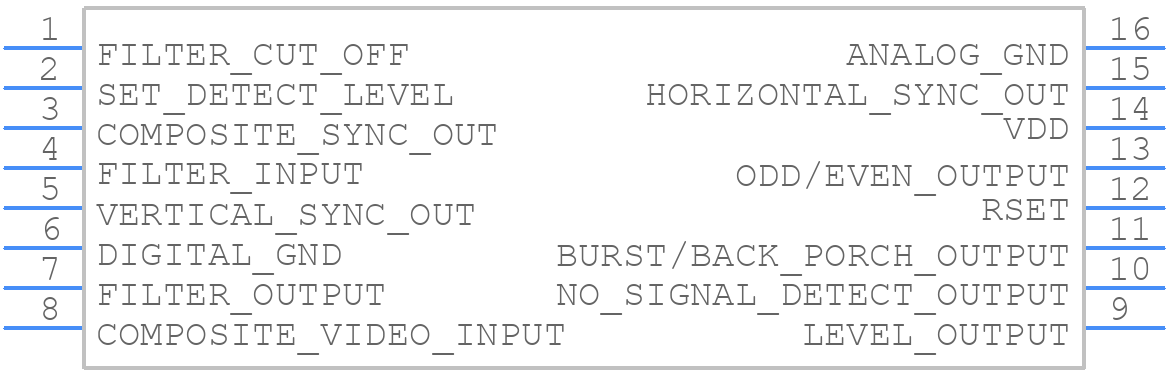

Use the download button to access the EL4583CSZ-T13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL458,
or try a keyword search, such as Signal Separator ICs
