Description:The EL5171 and EL5371 are single and triple bandwidth amplifiers with an output in differential form. They are primarily targeted for applications such as driving twisted-pair lines in component video applications. The input signal is single-ended and the outputs are always differential. On the EL5171 and EL5371, two feedback inputs provide the user with the ability to set the gain of each device (stable at minimum gain of one). For a fixed gain of two, please see EL5170 and EL5370. The output common mode l
A good PCB layout for the EL5171ISZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
The EL5171ISZ requires a single 5V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized. It's also recommended to add decoupling capacitors close to the device to filter out noise and ensure stable operation.
The recommended operating temperature range for the EL5171ISZ is -40°C to 85°C. Operating the device outside this range may affect its performance, including reduced accuracy, increased noise, and decreased reliability. It's essential to ensure the device operates within the recommended temperature range to maintain optimal performance.
To troubleshoot common issues with the EL5171ISZ, start by checking the power supply voltage, ensuring it's within the recommended range. Verify the input voltage and current, and check for any noise or oscillations on the output. Also, ensure the device is properly grounded and that the PCB layout is correct. If issues persist, consult the datasheet and application notes for further guidance.
The EL5171ISZ has built-in ESD protection, but it's still essential to follow proper handling and storage procedures to prevent damage. To prevent latch-up, ensure the device is powered up and down correctly, and avoid applying voltage to the output pins before powering up the device. Additionally, use a latch-up prevention diode and a series resistor on the output pins to prevent latch-up.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL5171ISZ Overview

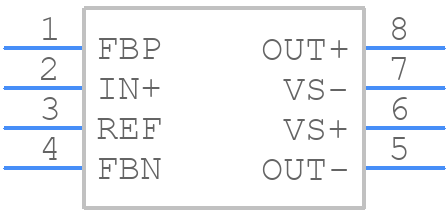

Use the download button to access the EL5171ISZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL517,
or try a keyword search, such as Line Driver or Receivers
