EL5244CYZ - Renesas Electronics

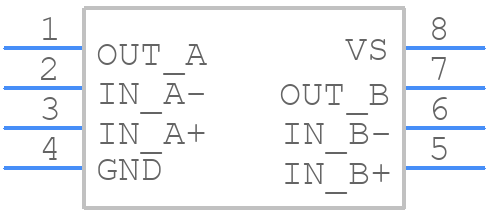

EL5244CYZ Details

• Manufacturer Part Number:

  EL5244CYZ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  MSOP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Date Of Intro:

  2017-10-03

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.1 µA

• Bias Current-Max (IIB) @25C:

  0.1 µA

• Common-mode Reject Ratio-Min:

  47 dB

• Common-mode Reject Ratio-Nom:

  60 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  25000 µV

• JESD-30 Code:

  S-PDSO-G8

• Length:

  3 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1.1 mm

• Slew Rate-Min:

  150 V/us

• Slew Rate-Nom:

  200 V/us

• Supply Current-Max:

  17.6 mA

• Supply Voltage Limit-Max:

  6 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  60

• Voltage Gain-Min:

  100

• Wideband:

  NO

• Width:

  3 mm
