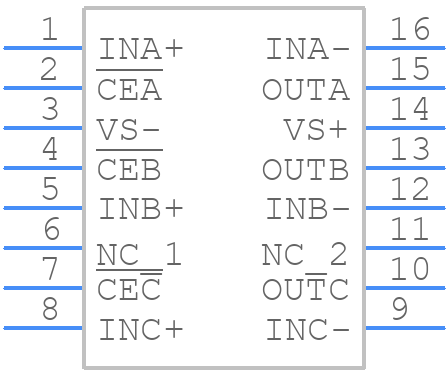

EL5304IU-T13 - Renesas Electronics

EL5304IU-T13 Details

• Manufacturer Part Number:

  EL5304IU-T13

• Part Life Cycle Code:

  Obsolete

• Package Description:

  QSOP-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  30 µA

• Bias Current-Max (IIB) @25C:

  30 µA

• Common-mode Reject Ratio-Min:

  56 dB

• Common-mode Reject Ratio-Nom:

  62 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  18000 µV

• JESD-30 Code:

  R-PDSO-G16

• Length:

  4.9022 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -6.6 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Packing Method:

  TR, 13 INCH

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1.727 mm

• Slew Rate-Min:

  2000 V/us

• Slew Rate-Nom:

  3000 V/us

• Supply Current-Max:

  11 mA

• Supply Voltage Limit-Max:

  6.6 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Voltage Gain-Min:

  562.34132

• Wideband:

  NO

• Width:

  3.9116 mm
