EL5364ISZ-T7 - Renesas Electronics

Description: The EL5164, EL5165, and EL5364 are current feedback amplifiers with a very high bandwidth of 600MHz. This makes these amplifiers ideal for today’s High-Speed video and monitor applications. With a supply current of just 3. 5mA per amplifier and the ability to run from a single supply voltage from 5V to 12V, these amplifiers are also ideal for handheld, portable or battery-powered equipment. The EL5164 and EL5364 also incorporate an enable and disable function to reduce the supply current to 14µA typical per

Download EL5364ISZ-T7 Model

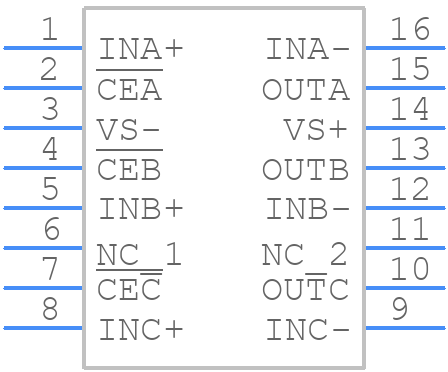

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EL5364ISZ-T7 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MDP0027
click to zoom
3D Models
EL5364ISZ-T7 - Renesas Electronics  - 3D model - Small Outline Packages - MDP0027
click to zoom

EL5364ISZ-T7 Details

  • Manufacturer Part Number:

    EL5364ISZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    MDP0027

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    62 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -6.6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.7272 mm

  • Slew Rate-Min:

    3000 V/us

  • Slew Rate-Nom:

    4200 V/us

  • Supply Current-Max:

    12.6 mA

  • Supply Voltage Limit-Max:

    6.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    YES

  • Width:

    3.9116 mm
