Description:The EL5120, EL5220, and EL5420 are low power, high voltage, rail-to-rail input-output amplifiers. The EL5120 contains a single amplifier, the EL5220 contains two amplifiers, and the EL5420 contains four amplifiers. Operating on supplies ranging from 5V to 15V, while consuming only 500µA per amplifier, the EL5120, EL5220, and EL5420 have a bandwidth of 12MHz (-3dB). They also provide common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables these amplifiers to
A good PCB layout for the EL5420CRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
The EL5420CRZ requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD). The power-down sequence should be reversed, with VDD powered down before VCC.
The recommended clock frequency for the EL5420CRZ is 10 MHz to 40 MHz, with a clock signal quality of less than 100 ps of jitter. A high-quality clock signal is essential for optimal performance and to minimize jitter and noise.
To optimize the EL5420CRZ for low power consumption, use the power-down mode, which reduces the power consumption to less than 1 mA. Additionally, the device has a shutdown mode that reduces the power consumption to less than 10 μA. The power-saving features include a low-power mode, shutdown mode, and a programmable output current limit.
The EL5420CRZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, follow the recommended PCB layout guidelines to minimize thermal resistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL5420CRZ Overview

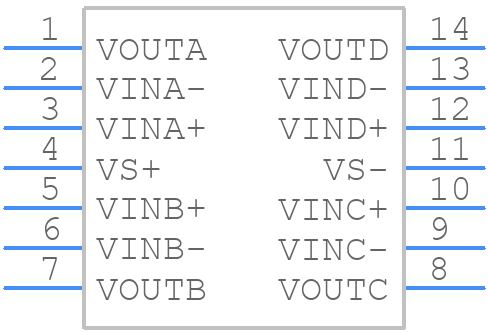

Use the download button to access the EL5420CRZ schematic symbol, PCB footprint, and 3D model.
