EL7154CN footprint, schematic symbol and 3D model by Renesas Electronics

EL7154CN - Renesas Electronics

Description: The EL7154 three-state pin driver is particularly well suited for ATE and level shifting applications. The 4A peak drive capability, makes the EL7154 an excellent choice when driving High-Speed capacitive lines. The P-Channel MOSFET is completely isolated from the power supply, providing a high degree of flexibility. Pin (7) can be grounded, and the output can be taken from pin (8) when a source follower output is desired. The N-Channel MOSFET has an isolated drain, but shares a common bus with pre-drivers

Download EL7154CN Model

Schematic
symbols

PCB
footprints

3D
models

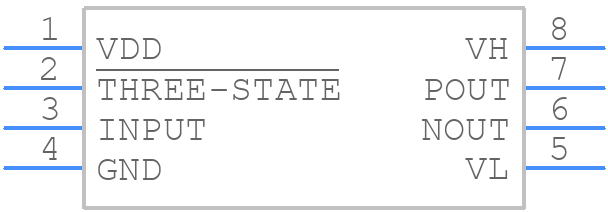

Symbol

click to zoom

PCB Footprints

EL7154CN - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MDP0031

click to zoom

3D Models

EL7154CN - Renesas Electronics - 3D model - Dual-In-Line Packages - MDP0031

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EL7154CN
Part Number EL7154CN
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - MDP0031
Released Date Mar 29, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

EL7154CN Details

Manufacturer Part Number:
EL7154CN
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

EL7154CN Overview

Use the download button to access the EL7154CN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EL715, or try a keyword search, such as Peripheral Drivers
