Description:The EL7154 three-state pin driver is particularly well suited for ATE and level shifting applications. The 4A peak drive capability, makes the EL7154 an excellent choice when driving High-Speed capacitive lines. The P-Channel MOSFET is completely isolated from the power supply, providing a high degree of flexibility. Pin (7) can be grounded, and the output can be taken from pin (8) when a source follower output is desired. The N-Channel MOSFET has an isolated drain, but shares a common bus with pre-drivers
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
Renesas recommends following the IEC 61967 standard for EMC compliance, and provides guidelines for PCB design, component selection, and shielding in their application notes and design guides.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at extreme temperatures. Consult the datasheet and application notes for specific derating guidelines.
Yes, the EL7154CSZ-T7 is qualified for automotive and high-reliability applications, meeting AEC-Q100 and ISO 26262 standards. However, additional testing and validation may be required for specific use cases.
Renesas provides a troubleshooting guide in their application notes, which includes steps for debugging, fault detection, and failure analysis. Additionally, Renesas offers technical support and resources for customers.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL7154CSZ-T7 Overview

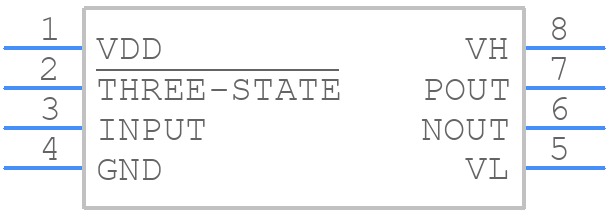

Use the download button to access the EL7154CSZ-T7 schematic symbol, PCB footprint, and 3D model.
