EL7154CSZ - Renesas Electronics

Description: The EL7154 three-state pin driver is particularly well suited for ATE and level shifting applications. The 4A peak drive capability, makes the EL7154 an excellent choice when driving High-Speed capacitive lines. The P-Channel MOSFET is completely isolated from the power supply, providing a high degree of flexibility. Pin (7) can be grounded, and the output can be taken from pin (8) when a source follower output is desired. The N-Channel MOSFET has an isolated drain, but shares a common bus with pre-drivers

Download EL7154CSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

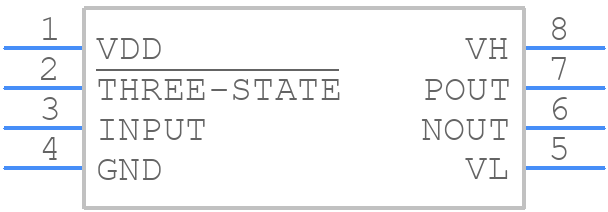

EL7154CSZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
EL7154CSZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8. 15E
click to zoom
3D Models
EL7154CSZ - Renesas Electronics - 3D model - Small Outline Packages - M8. 15E
click to zoom

EL7154CSZ Details

  • Manufacturer Part Number:

    EL7154CSZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-11

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

EL7154CSZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the EL7154CSZ is 4.5V to 5.5V.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which includes applying a stable voltage source, waiting for the internal voltage regulator to settle, and then applying the clock signal.
  • The EL7154CSZ supports clock frequencies up to 100 MHz.
  • To handle thermal considerations, ensure proper heat sinking, keep the device away from heat sources, and follow the recommended thermal design guidelines to prevent overheating.
  • Follow the recommended PCB layout and routing guidelines to minimize noise, ensure signal integrity, and prevent electromagnetic interference (EMI).
