EL7182CN - Renesas Electronics

Description: High Speed CCD Driver

Download EL7182CN Model

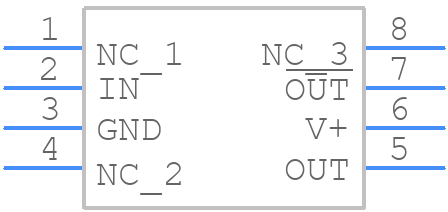

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EL7182CN - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Ld PDIP (Pb-free)
click to zoom
3D Models
EL7182CN - Renesas Electronics  - 3D model - Dual-In-Line Packages - 8 Ld PDIP (Pb-free)
click to zoom

EL7182CN Details

  • Manufacturer Part Number:

    EL7182CN

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PDIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.525 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.334 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.025 µs

  • Turn-on Time:

    0.025 µs

  • Width:

    7.62 mm

EL7182CN Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1844, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends using a 3.3V power supply with a minimum of 100nF decoupling capacitor between VCC and GND, and an additional 10uF capacitor for bulk decoupling. It's also important to ensure the power supply is stable and noise-free.
  • The EL7182CN is rated for operation from -40°C to +125°C, but it's recommended to operate within the -20°C to +85°C range for optimal performance and reliability.
  • The EL7182CN has a low-power mode that can be enabled by setting the PD pin high. In this mode, the device consumes significantly less power, but some features may be disabled. Refer to the datasheet for specific details on low-power mode operation.
  • The EL7182CN can operate with a clock frequency up to 100MHz, but Renesas recommends using a clock frequency between 10MHz to 50MHz for optimal performance and noise immunity.
