Description:The EL7202, EL7212, EL7222 ICs are matched dual-drivers that improve the operation of the industry standard DS0026 clock drivers. The Elantec versions are very High-Speed drivers capable of delivering peak currents of 2. 0 amps into highly capacitive loads. The High-Speed performance is achieved by means of a proprietary Turbo-Driver circuit that speeds up input stages by tapping the wider voltage swing at the output. Improved speed and drive capability are enhanced by matched rise and fall delay times. The
A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal gradients and hotspots. Also, consider using thermal protection circuits or thermal sensors to monitor the device temperature.
Use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and ensure that the PCB is designed with EMI-reducing features such as ground planes, decoupling capacitors, and EMI filters.
Check the oscillator circuit for proper component values and layout, ensure that the oscillator pins are not loaded or shorted, and verify that the oscillator frequency is within the recommended range. Also, check for any noise or interference on the oscillator pins.
Store the devices in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the devices by the body, not the pins, and avoid bending or flexing the pins. Use anti-static wrist straps and mats when handling the devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL7222CSZ-T7 Overview

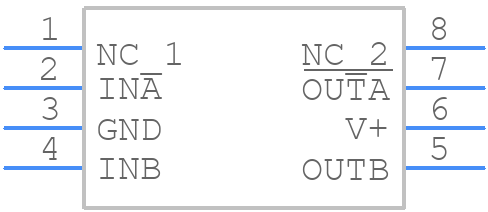

Use the download button to access the EL7222CSZ-T7 schematic symbol, PCB footprint, and 3D model.
