EL7252CN - Renesas Electronics

Description: Power MOSFET Driver

Download EL7252CN Model

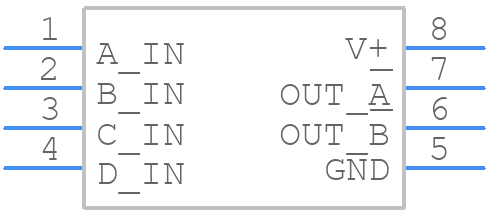

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EL7252CN - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - CA3193AE
click to zoom
3D Models
EL7252CN - Renesas Electronics  - 3D model - Dual-In-Line Packages - CA3193AE
click to zoom

EL7252CN Details

  • Manufacturer Part Number:

    EL7252CN

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PDIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-16

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    AND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.585 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.025 µs

  • Turn-on Time:

    0.025 µs

  • Width:

    7.62 mm

EL7252CN Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note 'EL7252CN Thermal Design Guide' (R01AN0265EU0100). It suggests using a 4-layer PCB with a thermal relief pattern on the bottom layer, and placing thermal vias under the IC to improve heat dissipation.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms. Renesas also recommends using a thermistor or thermocouple to monitor the temperature and adjust the system accordingly.
  • Although the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowed voltage on the input pins is 7V, which is higher than the recommended VCC voltage. Exceeding this voltage may damage the device.
  • Renesas recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect the EL7252CN from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • The recommended clock frequency for the EL7252CN is 100 kHz to 400 kHz. Operating the device outside this range may affect its performance and reliability. It's essential to follow the clock frequency guidelines to ensure proper operation.
