EL7457CLZ-T13 - Renesas Electronics

Description: The EL7457 is a High-Speed, non-inverting, quad CMOS driver. It is capable of running at clock rates up to 40MHz and features 2A peak drive capability and a nominal on-resistance of just 3Ω. The EL7457 is ideal for driving highly capacitive loads, such as storage and vertical clocks in CCD applications. It is also well suited to ATE pin driving, level-shifting, and clock-driving applications. The EL7457 is capable of running from single or dual power supplies while using ground referenced inputs. Each outpu

Download EL7457CLZ-T13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

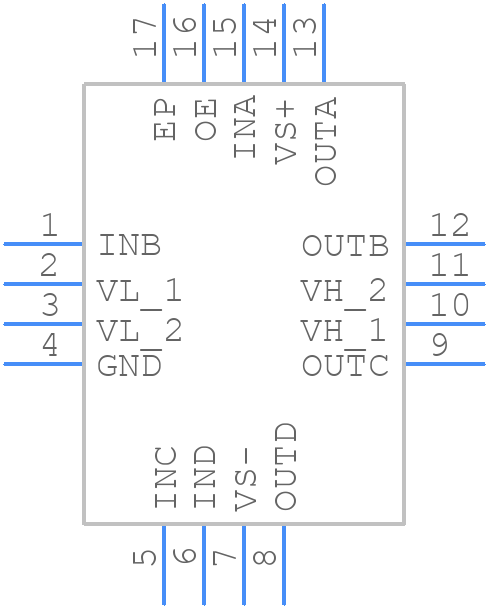

Symbol
EL7457CLZ-T13 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
EL7457CLZ-T13 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.4x4H
click to zoom
3D Models
EL7457CLZ-T13 - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.4x4H
click to zoom

EL7457CLZ-T13 Details

  • Manufacturer Part Number:

    EL7457CLZ-T13

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.4X4H

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2017-10-16

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.03 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.0125 µs

  • Turn-on Time:

    0.0145 µs

  • Width:

    4 mm

EL7457CLZ-T13 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal gradients and hotspots.
  • Critical timing parameters include clock frequency, setup and hold times, and propagation delay. Ensure that these parameters are met by carefully designing the PCB layout, selecting suitable components, and verifying the design through simulation and testing.
  • Implement ESD protection measures such as TVS diodes, ESD arrays, or ESD-protected connectors to prevent damage from electrostatic discharge. Follow the recommended PCB layout and handling guidelines to minimize ESD risks.
  • The device requires a specific power-up sequence to ensure proper operation. Ensure that the power supplies are sequenced correctly, with the core voltage (VCC) powered up before the I/O voltage (VCCIO).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EL7457CLZ-T13 Overview

Use the download button to access the EL7457CLZ-T13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL745, or try a keyword search, such as MOSFET Drivers
