Description:The EL7530 is a synchronous, integrated FET 600mA step-down regulator with internal compensation. It operates with an input voltage range from 2. 5V to 5. 5V, which accommodates supplies of 3. 3V, 5V, or a Li-Ion battery source. The output can be externally set from 0. 8V to VIN with a resistive divider. The EL7530 features automatic PFM/PWM mode control, or PWM mode only. The PWM frequency is typically 1. 4MHz and can be synchronized up to 12MHz. The typical no load quiescent current is only 120µA. Additio
Renesas provides a recommended PCB layout in the EL7530IYZ application note (R20AN0244EJ0100). It suggests using a 4-layer PCB with a solid ground plane, placing the device near the center of the board, and using thermal vias to dissipate heat.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms. Renesas also provides thermal design guidelines in the application note (R20AN0244EJ0100).
To minimize EMI and noise, use a multi-layer PCB, keep sensitive analog signals away from digital signals, use shielding and grounding techniques, and follow the recommended layout and routing guidelines in the application note (R20AN0244EJ0100).
To optimize the EL7530IYZ for low-power consumption, use the power-saving modes (e.g., sleep mode), reduce the switching frequency, use a low-dropout regulator, and optimize the external component selection. Renesas provides power-saving guidelines in the datasheet and application note (R20AN0244EJ0100).
Renesas provides a list of recommended external components in the datasheet and application note (R20AN0244EJ0100). These include capacitors, resistors, and inductors that meet specific requirements for voltage rating, capacitance, and inductance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL7530IYZ Overview

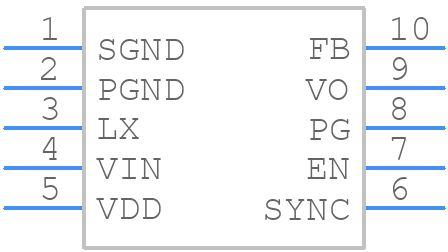

Use the download button to access the EL7530IYZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL753,
or try a keyword search, such as Switching Regulator or Controllers
