Description:The EL7534 is a synchronous, integrated FET 600mA step-down regulator with internal compensation. It operates with an input voltage range from 2.5V to 5.5V, which accommodates supplies of 3.3V, 5V, or a Li-Ion battery source. The output can be externally set from 0.8V to VIN with a resistive divider. The EL7534 features PWM mode control. The operating frequency is typically 1.5MHz. Additional features include a 100ms Power-On-Reset output, <1µA shut-down current, short-circuit protection, and over-temperatu
Renesas provides a recommended PCB layout guide in their application note (APL-AN-EL7534-001) which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms, such as thermal shutdown and over-temperature protection.
Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for the input and output capacitors. The specific capacitor values and types may vary depending on the application and operating conditions.
To troubleshoot common issues, check the PCB layout, component selection, and soldering quality. Ensure that the input and output capacitors are properly selected and placed. Also, verify that the device is operated within the recommended operating conditions and that the feedback loop is properly compensated.
Renesas recommends using a reflow soldering process with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. Hand soldering is not recommended due to the device's small size and high pin count.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL7534IYZ Overview

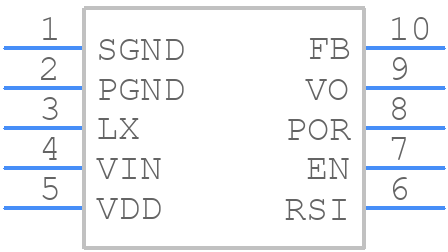

Use the download button to access the EL7534IYZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL753,
or try a keyword search, such as Switching Regulator or Controllers
