Description:The EL7536 is a synchronous, integrated FET 1A step-down regulator with internal compensation. It operates with an input voltage range from 2. 5V to 5. 5V, which accommodates supplies of 3. 3V, 5V, or a Li-Ion battery source. The output can be externally set from 0. 8V to VIN with a resistive divider. The EL7536 features PWM mode control. The operating frequency is typically 1. 4MHz. Additional features include a 100ms Power-On-Reset output,
Renesas provides a recommended PCB layout in their application note (APL-AN-114) for the EL7536IYZ-T13. It suggests using a 4-layer PCB with a solid ground plane, placing the device near the center of the board, and using thermal vias to dissipate heat.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a proper heat sink design. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms.
The EL7536IYZ-T13 has built-in ESD protection diodes on all pins, which can withstand up to ±2 kV of electrostatic discharge. To prevent latch-up, it's recommended to follow proper PCB design guidelines, use a low-impedance power supply, and avoid voltage spikes or transients on the power lines.
Yes, the EL7536IYZ-T13 is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to ensure that the device is used within its recommended operating conditions and that the system design meets the required automotive standards and regulations.
Renesas recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL7536IYZ-T13 Overview

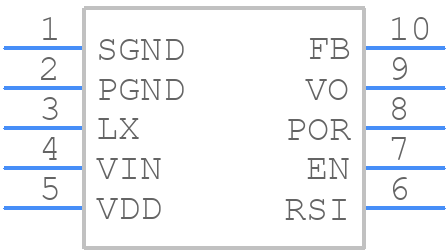

Use the download button to access the EL7536IYZ-T13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL753,
or try a keyword search, such as Switching Regulator or Controllers
