Description:The EL7536 is a synchronous, integrated FET 1A step-down regulator with internal compensation. It operates with an input voltage range from 2. 5V to 5. 5V, which accommodates supplies of 3. 3V, 5V, or a Li-Ion battery source. The output can be externally set from 0. 8V to VIN with a resistive divider. The EL7536 features PWM mode control. The operating frequency is typically 1. 4MHz. Additional features include a 100ms Power-On-Reset output,
A good PCB layout for the EL7536IYZ involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog nodes.
To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A low-ESR capacitor with a value between 10uF to 22uF is recommended. Additionally, the output voltage can be stabilized by adding a feedforward capacitor (Cff) between the output and the feedback pin.
The EL7536IYZ can operate in an ambient temperature range of -40°C to +85°C. However, the junction temperature (TJ) should not exceed 150°C to ensure reliable operation.
Yes, the EL7536IYZ can be used in a synchronous rectification configuration. This can improve efficiency by reducing the rectifier losses. However, it's essential to ensure that the synchronous rectifier is properly synchronized with the switching frequency and that the layout is optimized to minimize parasitic inductances.
The maximum output current capability of the EL7536IYZ depends on the input voltage, output voltage, and the inductor value. A good rule of thumb is to use the following equation: Iout_max = (Vin - Vout) / (Rds(on) * L), where Rds(on) is the on-resistance of the internal switch and L is the inductor value.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL7536IYZ Overview

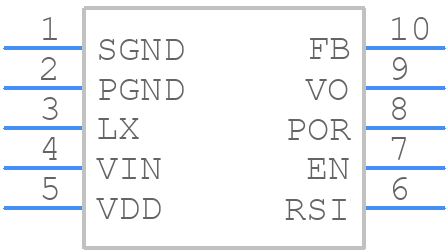

Use the download button to access the EL7536IYZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL753,
or try a keyword search, such as Switching Regulator or Controllers
